Cooling and Graphics from the HP MicroServer

John Stutsman has released 2 more videos detailing his antics with his HP MicroServer’s.

John Stutsman

In his first vid John adds fans to cool the heat sink on the Gen8:

In this video I mount 4 Evercool 30x30x7mm EC3007M12CA fans on the CPU Heat Sink on my HP ProLiant Gen8 MicroServer. In addition to the 4 Evercool fans I used a Molex to 3 pin Fan power adapter with 3 additional 3 pin Fan connectors soldered on.
Earlier I had tried to mount 2 Noctua 40x40x10mm but lacked adequate clearance to reload the system board in the MicroServer so I ended up just mounting 1 Evercool 30x30x7mm EC3007M12CA on the CPU Heat Sink…


This second video shows the N40L MicroServer with a Radeon HD6450 Graphics Card proving output to 2 monitors:

…I show how I installed a Sapphire Radeon HD6450 Graphics card in a HP ProLiant N40L MicroServer providing HDMI and DVI Output to two Monitors with Sound playing through the HDMI connection on the Planar monitor. I had installed Windows 7 Pro 64b as my OS onto a Corsair Force GT 60GB SSD that was attached to a HighPoint Rocket 620A.

Home Gadget Geeks Episode 178

Home Gadget Geeks

Episode 178 of Home Gadget Geeks podcast has information on cloud storage sync, Home Server Connect Help, Hard Drive Deals and info on OneNote:

MVP John Zajdler (@Dieharder) and Kevin Schoonover (@schoondoggy1979) joins Jim (@jcollison) for show #178 of Home Gadget Geeks brought to you by the Average Guy Network, part of community. We start the show with a question from a listener about Syncing files with OneDrive. Kevin brings up AlwaysSync.  We do a deep dive on a new product from littleBits.  Kevin gives a live demo. John talks about an easy way to connect to your Windows Home Server and we also chat about the state of Hard Drives.  We wrap things up with a discussion on OneNote.

You can watch the video below or catch the audio from here.

Add-In: My Movies for Windows – Home and Essentials v5.10 Pre Release 2

The pre-release version of My Movies for Windows – Home and Essentials is now at version 5.10

My Movies for Windows - Home and Essentials

Version 5.10 Pre Release has the following change logs:

5.10 Pre Release 2:

  • There were some parts of the new movie features that were not visible, as they were not correctly inserted in all pages after having been hidden behind a specific registry setting during development.

5.10 Pre Release 1:

  • Initial Release

My Movies 5.10 introduces support for generic movie profiles in My Movies, a feature that was originally planned for My Movies 5, but was postposed to be able to deliver the My Movies 5 software package quicker.

With the introduction of generic movie profiles, we are adding a third meta-data offering to our service, so that there are now Disc Titles (DVD, Blu-ray, HD DVD), Movies and TV Series.

The purpose of introducing movie profiles are to provide better support for users content that are not specifically on disc titles, such as digital downloads, but it can also be used to track older media such as VHS, LaserDisc and similar, but without support for barcodes.

Additional information on this pre release can be found here.

Synology Devices Running DSM 4 Compromised

Twitter user Mike Evangelist (‏@MikeEvangelist) posted the following on August 3rd:

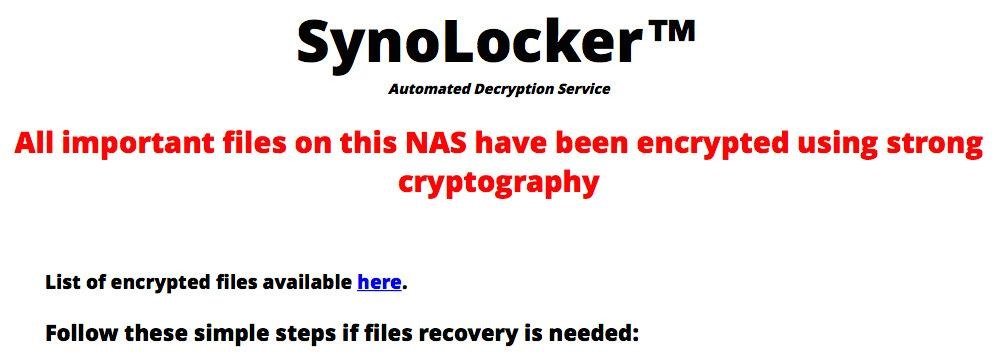

Lovely. My @Synology NAS has been hacked by ransomware calling itself Synolocker. Not what I wanted to do today.

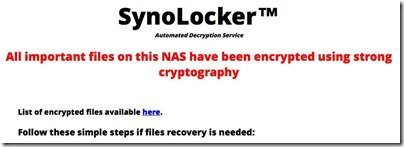

SynoLocker Tweet

The CryptoLocker deviation attacks Synology NAS devices by scanning the hard drives and encrypting the data. The only way of decrypting it is to pay a ransom of 0.6 Bitcoins (approx. $350) for a decryption key.

This only impacts devices running running DSM 4.3-3810 or earlier and does not impact DSM version 5.

More information is available from Synology here.

The Seagate 6TB Hard Drive

With all the news of WD’s 6TB Red hard drives, its quite easy to forget about the other hard drive producer Seagate, and their 6TB monster:

Seagate 6TB Hard Drive

•World’s fastest 6TB nearline hard drives
•10× the workload rating of desktop drives
•High reliability with an MTBF of 1.4M hours on all drives
•12Gb/s SAS and SATA 6Gb/s interfaces for easy integration
•Excellent IOPS/TB storage for unstructured data
•25% increase in areal density
•Seagate Instant Secure Erase feature on SED drives for secure, easy and cost-effective drive disposal

More details on the Seagate 6TB hard drive can be found here.

Western Digital Red 4TB and 6TB Hard Drives Reviewed

Want to know how the Western Digital Red 6TB hard drives perform?

WD 4TB and 6TB Red HArd Drives

If you do then We Got Served has reviewed the WD Red 6TB NAS Hard Drive (WD60EFRX) whilst PC Perspective have reviewed that same drive as well as the Red Pro 4TB too.

It’s great to see Western Digital expand the capacities of the Red all the way up to 6TB. The upgraded NASware 3.0, extending support to NAS devices up to 8-bays is also a welcome addition. An additional bonus was the new Red Pro line, which is essentially high performance enterprise internals hiding under a red label – supported in arrays of up to 16 drives thanks to hardware vibration compensation.

We Got Served: Review: Western Digital WD Red 6TB NAS Hard Drive (WD60EFRX)
PC Perspective: Western Digital Red 6TB and Red Pro 4TB Full Review – Bigger and Faster

StableBit DrivePool and Scanner review

When the original version of Windows Home Server (WHS) shipped way back in 2007, one of its greatest features was the Drive Extender (or DE it was often referred to). Drive Extender was great for both novices and techies alike, as it allowed WHS to seamlessly aggregate all of the servers hard disks, and painlessly present them as a single pool of storage space.

You wanted more storage space? Easy, just connect a new hard disk and DE would add it to the pool without interruption or loss of existing data.

You need multiple copies of files for protection? Simple, if your pool had more than one disk, then DE would allow data to be duplicated on multiple disks, protecting the data from a drive failure.

If you needed to remove a drive from the pool, DE would make sure all of the data was moved across to the remaining disks before letting you removed it.

This all sounds great, and it was, right up until the point in 2010 when Microsoft announced that DE would not be available on the new Windows Home Server 2011. For many users, DE was seen as a key feature on a home server and without it, you would be forced into either a costly RAID solution or having to manage the storage on each individual hard disk on the server.

So what do you do now if you want a simpler way to manage a multi-disk home server? Step forward StableBit with DrivePool and Scanner software. DrivePool is our main focus here, as it’s a 3rd party replacement for the original DE software, but lets not overlook Scanner as well, because combining the two products gives extra protection against the loss of your data.

Either tool is available as a standalone product from StableBit’s web site; DrivePool costs $19.95 and Scanner is $24.95, or a package of both can be bought for $34.95. A 30 day free trial is available on both products, so you can fully test them before committing.

But what exactly are you getting, and what can these products do for your PC?


Lets take a look at DrivePool first.

DrivePool takes the idea of the original Drive Extender, but then improves on it in 2 key ways:

  • As DrivePool is a standalone product, its benefits are available for all versions of Windows, not just WHS V1.
  • DrivePool provides far greater flexibility to how your data is duplicated; right down to individual folders whereas DE was only customisable to the individual share.

Of course, these are not the only benefits. Unlike DE, there is no need to reformat a new disk as DrivePool will use an existing NTFS formatted disk so you don’t lose existing data on that drive.

Data isn’t in proprietary format, so recovery tools will be perfectly happy to recover files from a disk if the unthinkable happens. When using Windows Home Server 2011, you also get a console plug-in to control the pool locally or remotely.

DrivePool - WHS 2011

Create the Pool

To make all of this work, you first need to create a new pool by assigning it a free drive letter, I chose P:, and then add any available non-pooled disks. The disk will be assigned to the pool and its free storage space will become available to the P: drive. Your new P: drive works exactly like any normal disk, but instead of it being a single hard disk, it is actually the aggregation of all of pooled hard disks.

One important difference with adding hard disks into a StableBit DrivePool compared to WHS Drive Extender, is that the newly added hard disk wont be re-formatted and any existing data will not be lost. In fact, you can continue to use a newly pooled disk exactly as you did before, with the pool simply using any free space on that disk. Another key difference is that DrivePool allows the creation of multiple pools if you happen to need more than one.

StableBit DrivePoolStableBit DrivePool

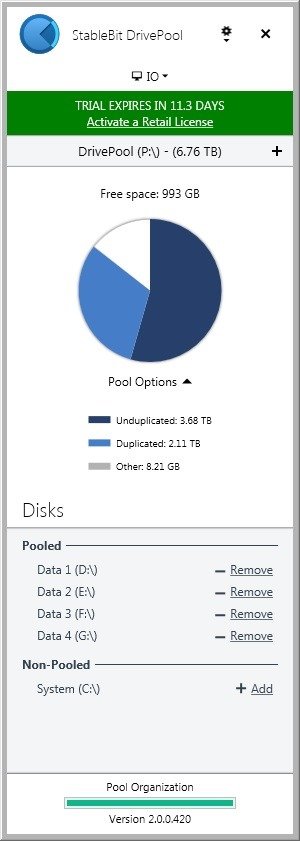

There is a standalone management application available for DrivePool if you prefer not to use the WHS Console or you are not using Windows Home Server 2011. The presentation of the information and control of the pool is identical regardless of which version you use.

Configure protection

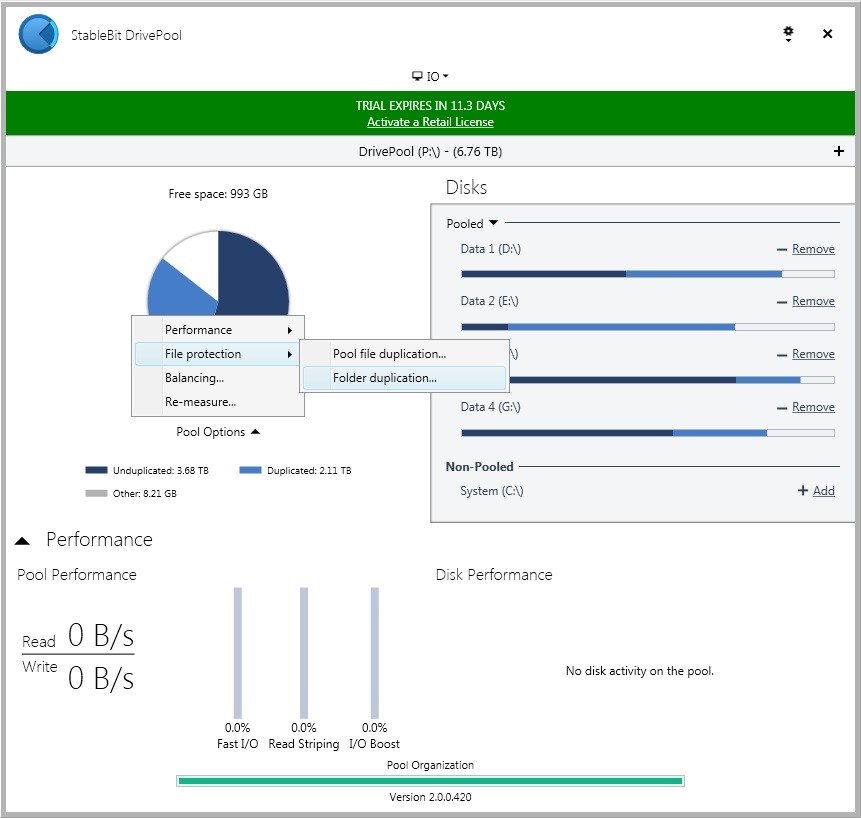

Now that you have created your large drive pool, it makes sense to protect your files by allowing DrivePool to duplicate them across multiple hard disks. This is done from the Pool Options – File Protection menu in the management application or console on WHS 2011.

StableBit DrivePool

In an ideal world, you would have enough capacity in your drive pool to enable complete duplication of all files, ensuring that everything is safe in the event of a single drive failure.

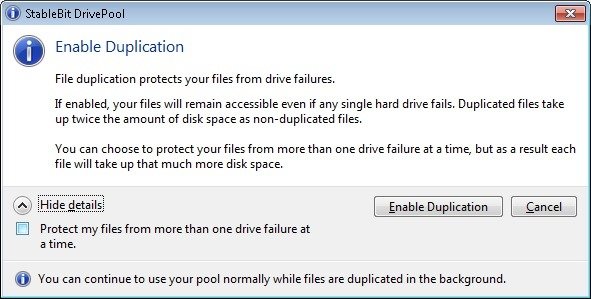

StableBit DrivePool - Duplication

The pool file duplication option brings up this dialogue that enables duplication across the entire pool. Assuming you have sufficient storage space and multiple disks, then DrivePool gets on with copying the files around in the background whilst leaving the pool drive free to use as normal.

If you don’t have the available storage space for full duplication, or you need a more granular approach to file protection, you can choose to duplicate files at a folder level.

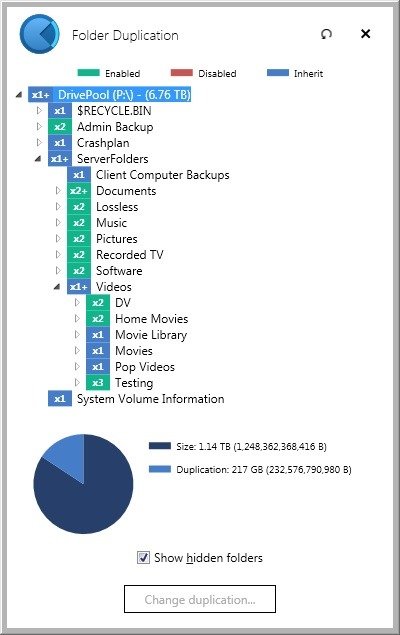

StableBit DrivePool - Duplication Folders

As you can see above, in my configuration some folders are not duplicated at all; some have 2 copies and the testing folder at the bottom has 3. The total number of copies is only limited by the physical number of hard disks and available space.

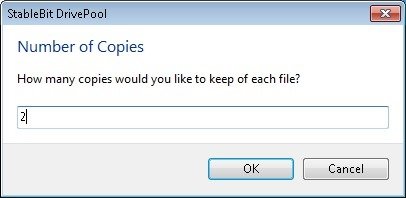

StableBit DrivePool - DuplicationCopies

This level of duplication control by far exceeds what was possible in the original Microsoft Drive Extender, and is a real bonus for files that you want to assign greater protection too.

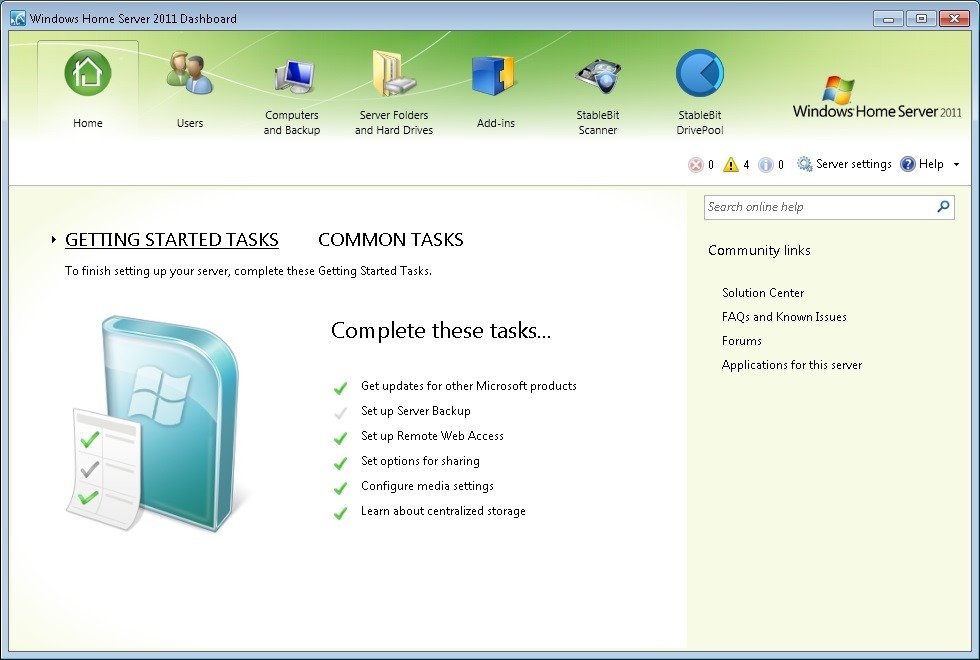

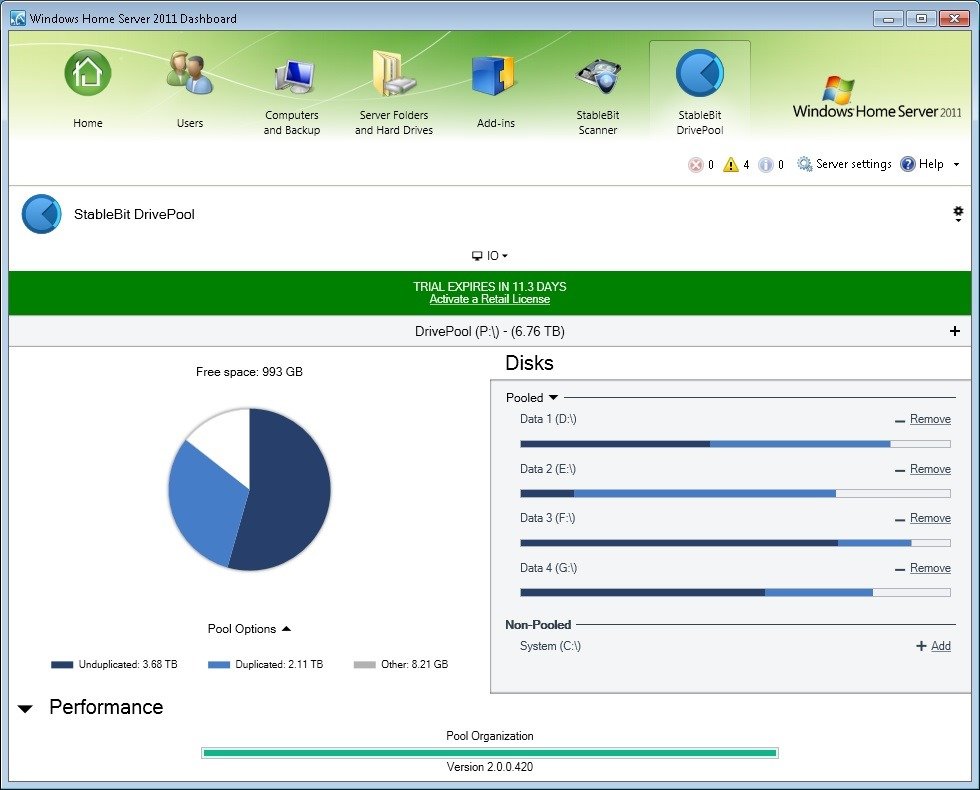

StableBit DrivePool - WHS 2011

Once the pool is created, with disks assigned and folder duplication enabled, you get a very clear overview of how your data is being managed by the pool.

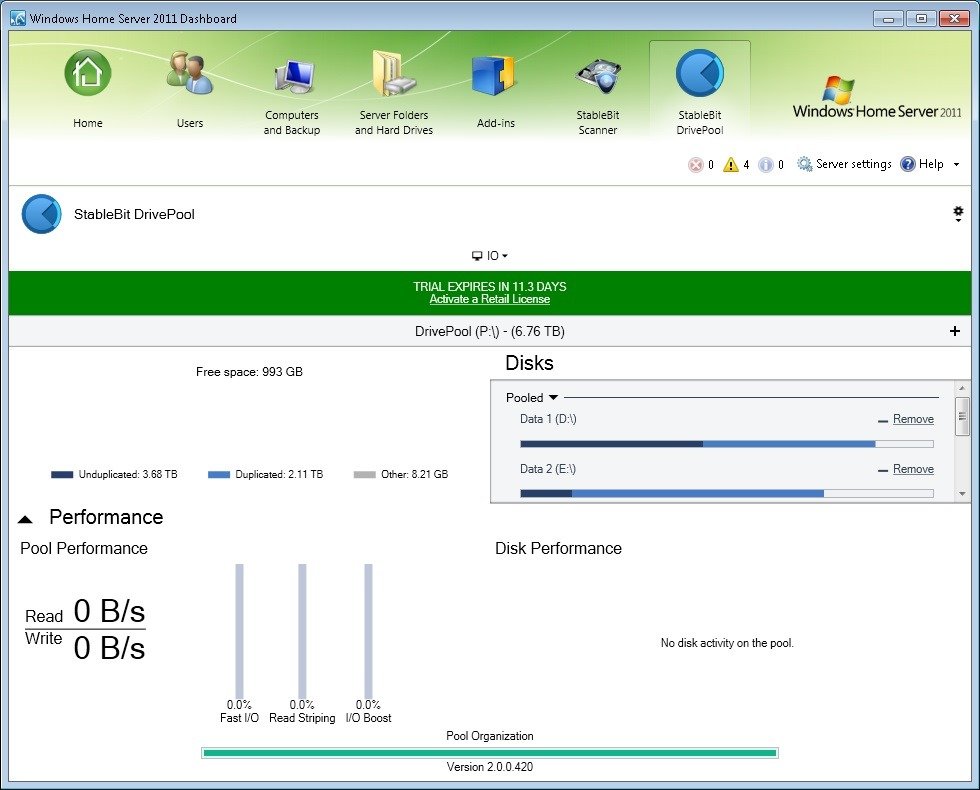

StableBit DrivePool - WHS 2011

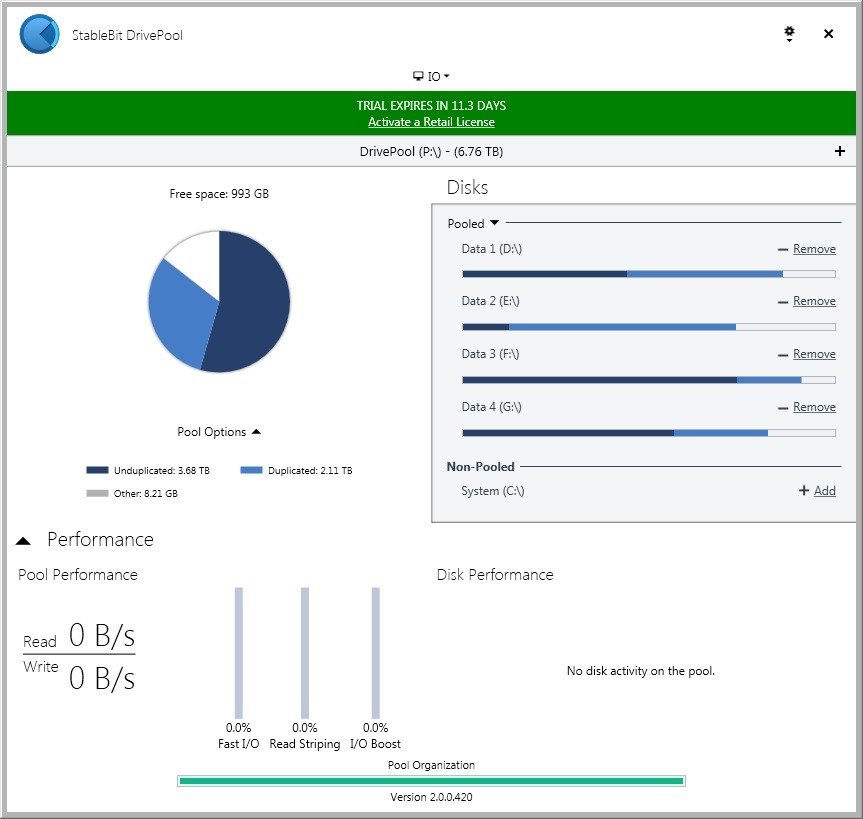

Performance statistics of the pool are available if you are interested how things are working behind the scenes.

More Advanced Stuff

If your server has different types and sizes of disks, you might want to use them for different purposes. The Balancing menu allows some fairly comprehensive configurations to let you store your data where you want.

StableBit DrivePool - Balancing

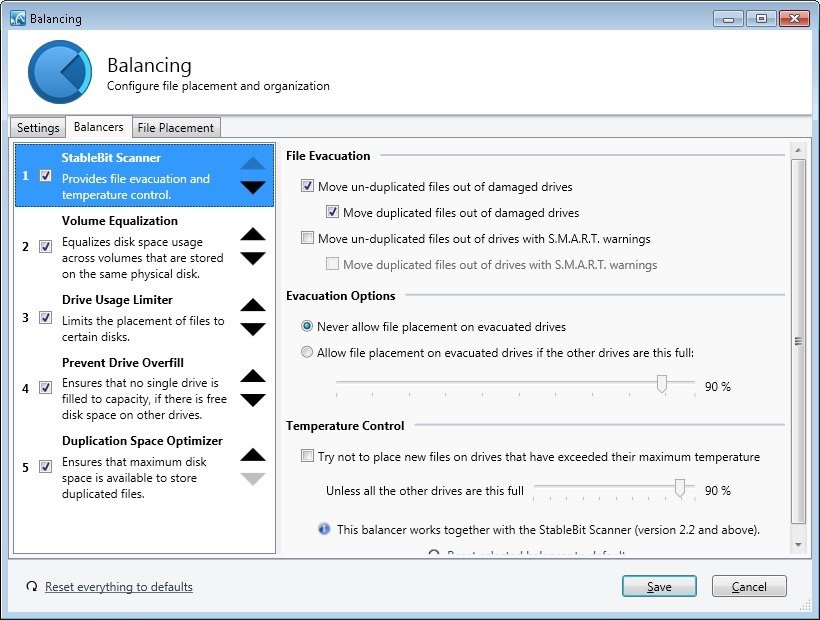

Working together with StableBit Scanner, DrivePool is able to safeguard files by automatically moving any unduplicated files from drives that are showing damage. Thankfully I haven’t had this happen on my server, but it’s reassuring to know that DrivePool is going to automatically protect files in this way.

StableBit DrivePool - Balancing

If want to dedicate any disk to store only duplicated or unduplicated files, then that is also something you can configure. By default, disks are used for both, but it is very simple to dedicate any single disk solely to the task of holding unduplicated files which could come in useful if you have an older disk that you don’t entirely trust.

StableBit DrivePool - Balancing

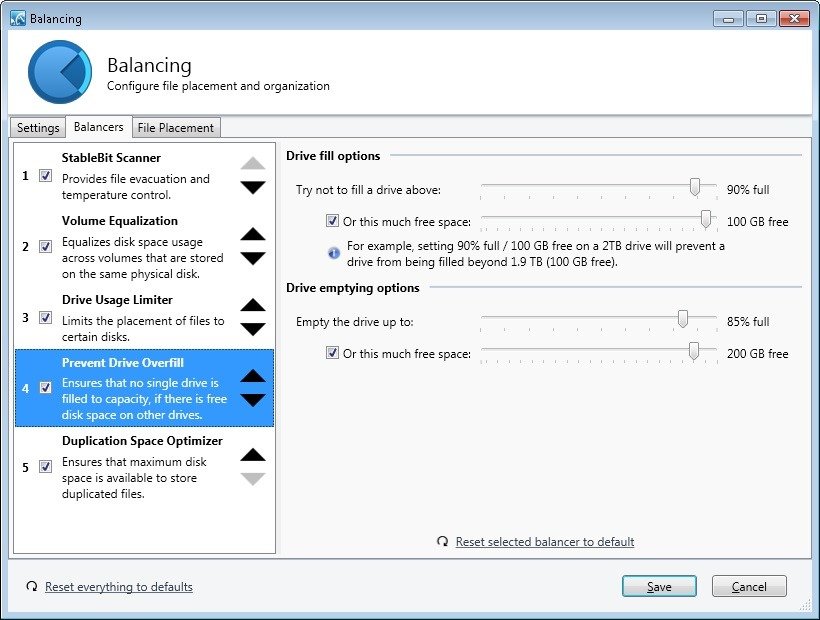

Another useful option is that you can prevent DrivePool overfilling any of the disks. Using a couple of sliders, you can set a maximum percentage or a minimum number of GB’s free on each of the disks.

Behind the scenes

One of the things I really like about StableBit DrivePool is that it’s not messing around with the hard disks in any way. There’s no fancy proprietary formatting going on here, your pooled disks are not reformatted at any point in the process, and no existing data is lost or needs to be removed. DrivePool simply works with any unused space on the disk, and anybody who has ever suffered a loss of data due to the failure of a hardware RAID solution will fully understand how significant this is.

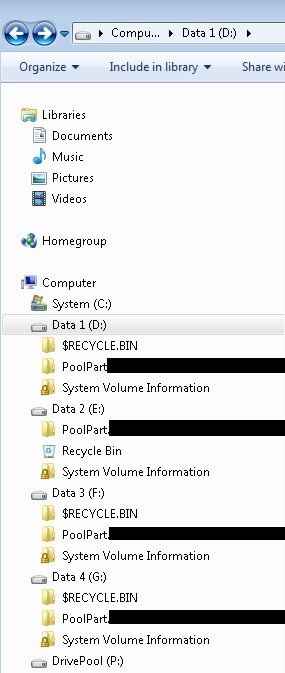

 StableBit DrivePool - Physical Disks

DrivePool achieves this clever trick by creating a hidden folder in the root of all the pooled disks.

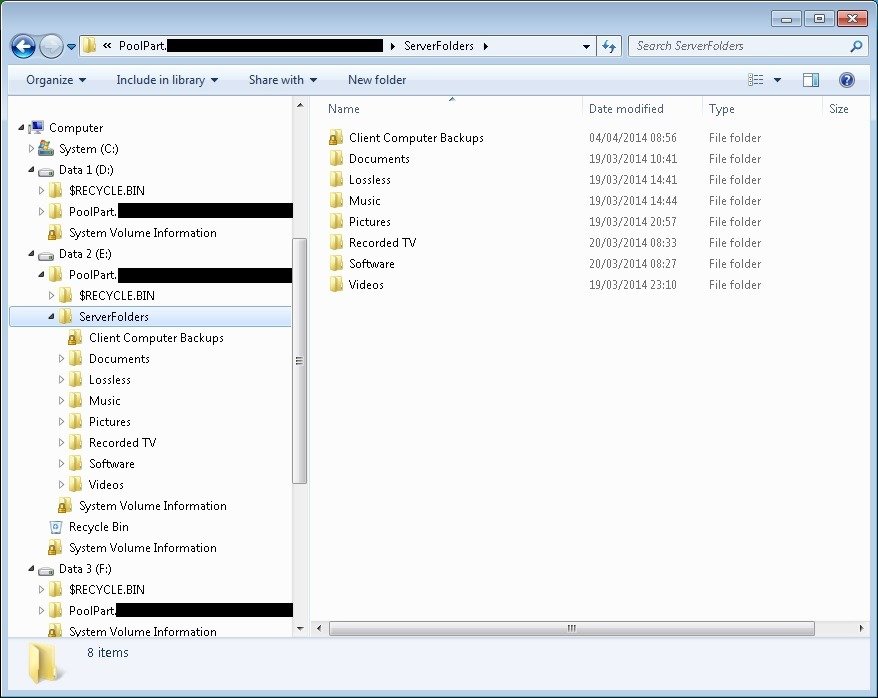

 StableBit DrivePool - Physical Disks

Within each of these hidden folders is the folder structure for any of the files that are contained in the pool drive. DrivePool virtually merges all of these folders and presents them as a single device; the pooled drive.

One of the huge benefits of this approach is in an emergency, you are able to take any pooled disk to another PC and access the files it contains without any problems. Remember the data is just hidden, so it remains intact and readable even without a PC running DrivePool.

In use

This will be a pretty short section, because once you have created your pool (or pools), and assigned your chosen duplication regime, that is really all you need to do.

Each pool presents itself as a drive letter to the PC in exactly the same way as any physical hard disk would, and from that point onwards you don’t have to worry about it; StableBit DrivePool keeps everything balanced and duplicated seamlessly behind the scenes. Your applications happily use the pool drive, oblivious to the fact that the storage is spanned across multiple physical disks.

You only need to revisit the control panel if you are nearing your maximum capacity and need to add or remove any disks. Newly installed disks show up in the Non-Pool section of the management tool, and are easily added to the pool to increase capacity. Same deal if you want to remove an existing pooled disk, simply click Remove and DrivePool moves its files to the remaining disks, allowing you to remove it without loss of data.

My experience with StableBit DrivePool gives no noticeable loss of performance using Windows Home Server 2011, and I had no compatibility issues with any software using the pool drive instead of physical disks.


This is going to be one of the easiest software recommendations I have had to make; if you are running a Windows server, in fact not just a server but any PC running Windows that has more than one hard disk, then you should think about installing StableBit DrivePool, as it is one of the most useful tools to simplify storage management and ensure data protection that I have come across.

Using DrivePool has considerably simplified the management of my server. I had forgotten how simple life used to be with the add and forget features of WHS V1, and regaining this capability was a breath of fresh air. Simplicity has returned to managing a home server.

StableBit DrivePool


StableBit Scanner - WHS 2011

Like DrivePool, Scanner is also managed through the WHS console if you are using Windows Home Server 2011. Its job is to look for problems that may impact your hard disks which it does in two ways: by performing routine physical read/write scans of each disk and by keeping a close eye on the S.M.A.R.T. values available directly from the disks hardware.

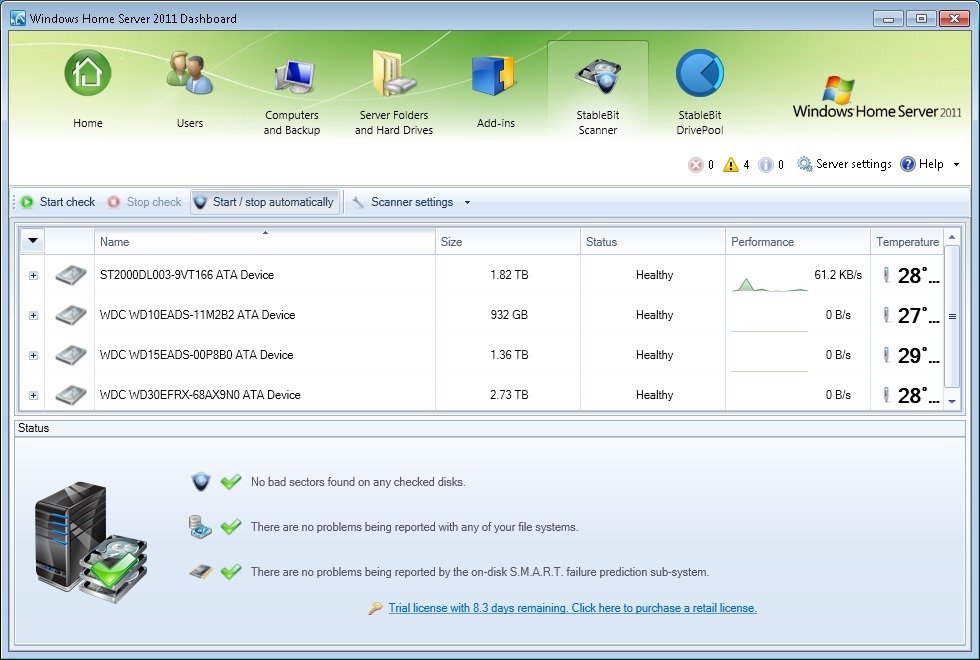

StableBit Scanner - WHS 2011

Initially you get to see all of your hard disks, along with some high-level information about health, performance and temperature.

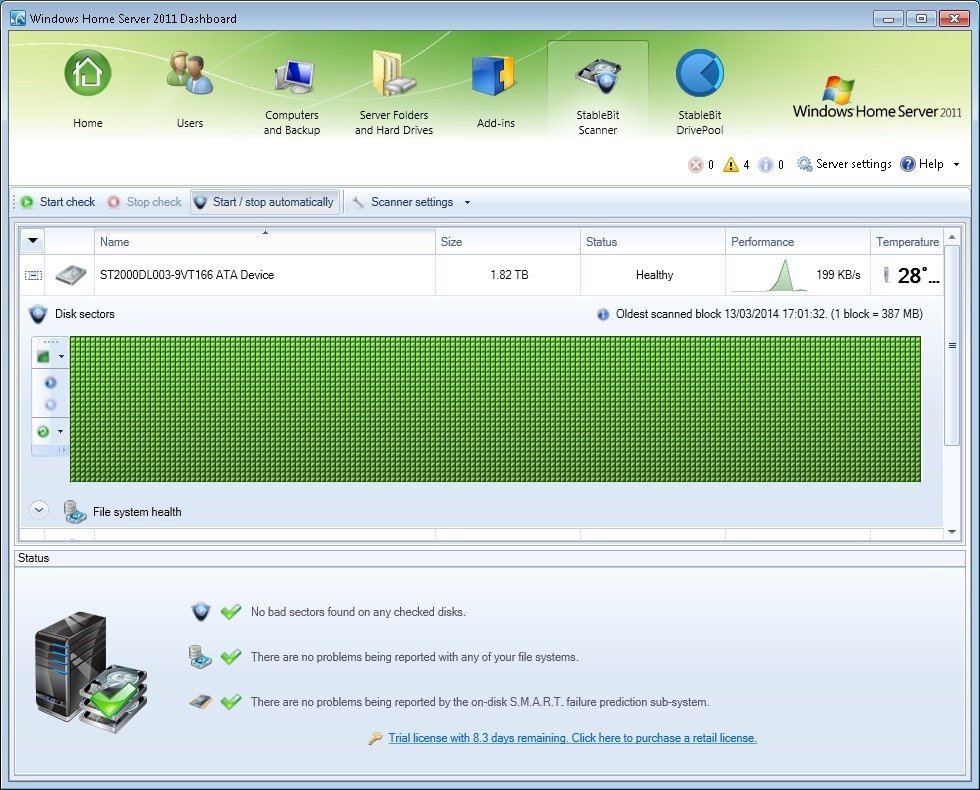

StableBit Scanner - WHS 2011

Dive in deeper, and you are able to see the health status for each sector on the disk. If any are having problems or are going to fail, then this screen should be able to show you the extent of the problems. All my disks were healthy, so I was unable to see how this view changed.

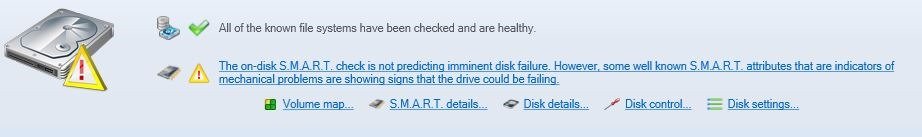

StableBit Scanner - Disk Options

We can now explore some of the extra options available for each disk.

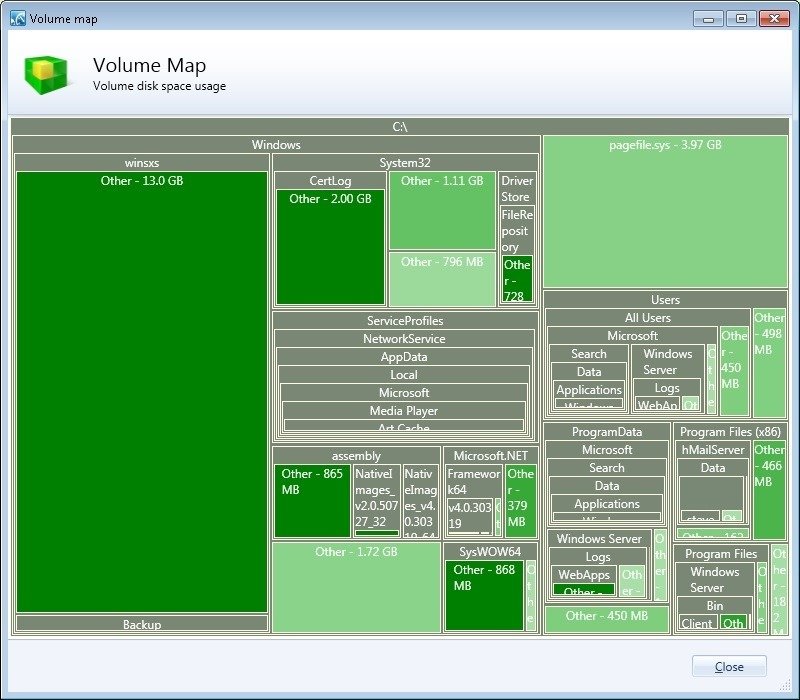

StableBit Scanner - Volume Map

The first feature is Volume Map, which graphically lets you see how much space each folder on the disk is taking up. This is really handy if you are running short on space, and want to see where it is all going by letting you identify long forgotten backup folders or large caches of movies.

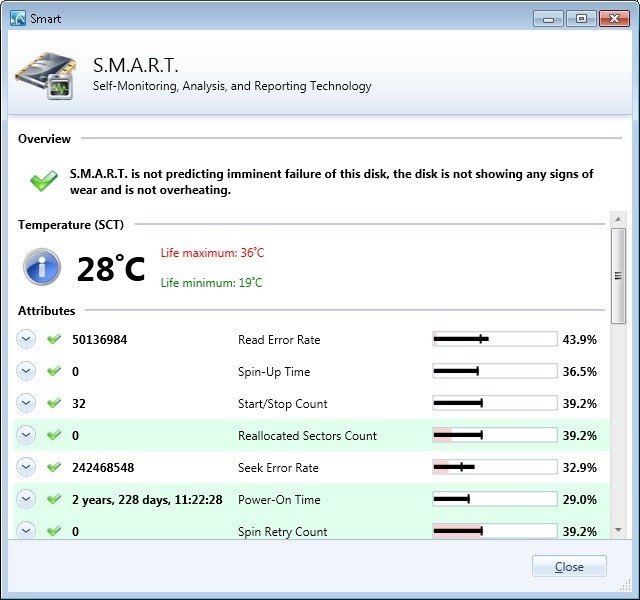

StableBit Scanner - S.M.A.R.T.

S.M.A.R.T. information about a disks performance is not something you often get easy access too. StableBit Scanner keeps a close eye on these values, and will alert you if any are cause for concern.

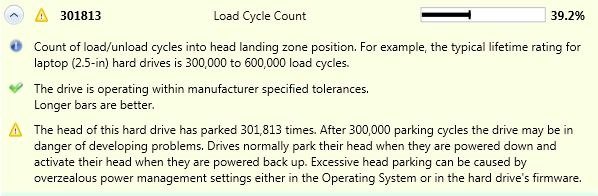

StableBit Scanner - Disk Error

Drilling into any of these values reveals further details about their meaning, and if you need to be concerned about what is being reported.

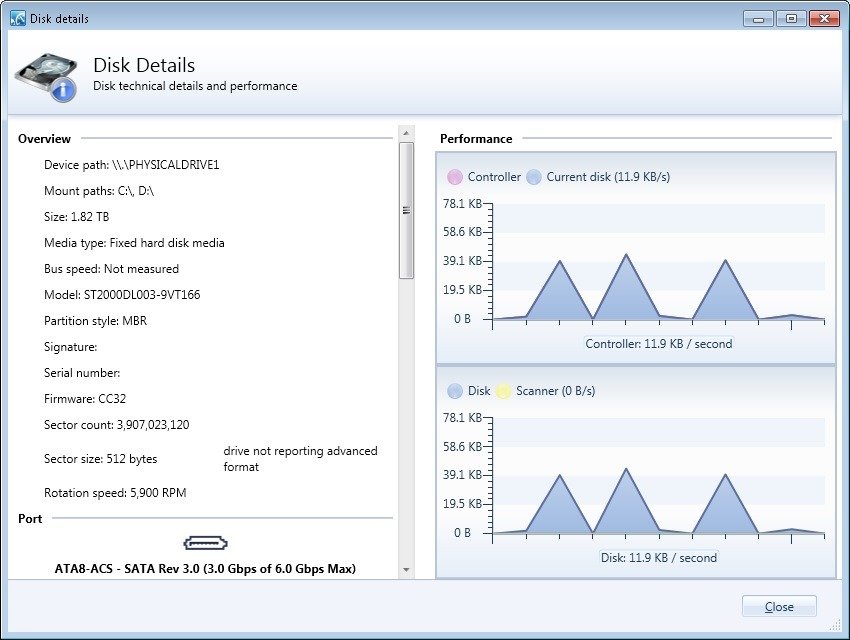

StableBit Scanner - Disk Details

Next is Disk Details, which provides hardware information and some historical performance graphs.

StableBit Scanner - Disk Control

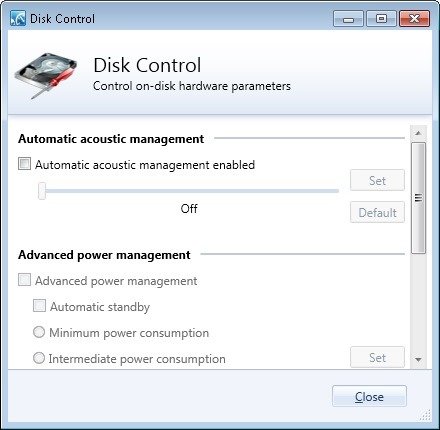

Disk Control is an interesting one. It allows control of some elements of the disks hardware which would normally only be available using a manufacturer specific software tool. I am using WD and Seagate disks in my server, and this screen brings together acoustic and power management controls into a single screen that works with both manufacturers disks.

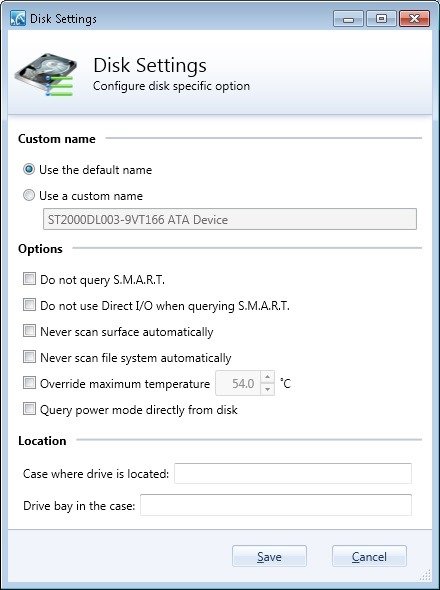

StableBit Scanner - Disk Settings

Finally Disk Settings provides some customisation if you need to override or change any of the Scanner behaviour on each of the disks.

In Use

StableBit Scanner runs behind the scenes and once everything is set, you really don’t have any interaction with it. Like DrivePool, there is no perceivable loss of performance, but in case you have heavy duty disk drive needs, you are able to control exactly when the Scanner does its read/write testing.

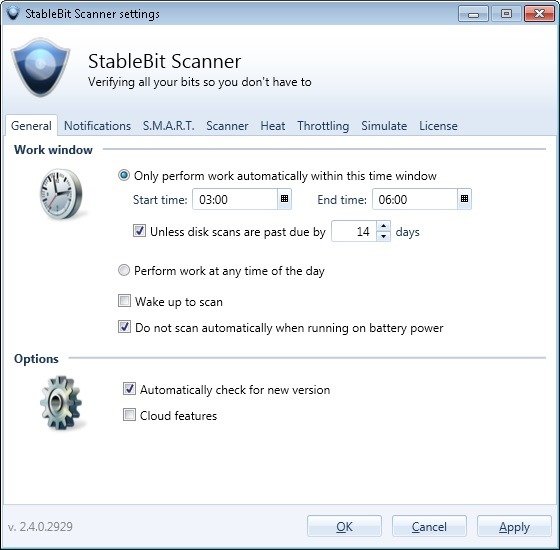

StableBit Scanner - General Settings

If your server is doing nothing overnight, let Scanner check the disks for errors.

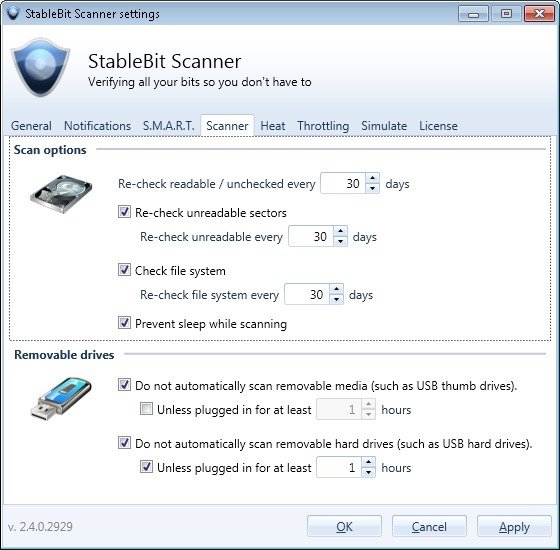

StableBit Scanner - Scanner Settings

The frequency for rechecking the disks can also be changed from its default of 30 days, to whatever period of time you are comfortable with.

If DrivePool Scanner does find anything to be concerned about, it can notify you with an email; with a speech announcement or for WHS 2011 users, via the Console.

And remember, when used in tandem with StableBit, any unduplicated data can be moved from a disk if Scanner decides that it’s going to fail or has the potential to cause problems.


I have been running StableBit Scanner for a few months now, and I honestly can’t conceive running my server without it. Having StableBi Scanner constantly looking out for problems and being able to take proactive action if issues arise is something that will help any server owner sleep better.

StableBit Scanner partnered with DrivePool are a formidable combination, and work together to simplify and protect your precious data.

StableBit Scanner

WD Announce 5TB and 6TB Red Hard Drives

Western Digital have announced the Red NAS hard drives in 5TB and first to market 6TB capacity drives, along with a Red Pro series.

WD Red NAS 5TB and 6TB

The WD Red 3.5-inch hard drives are now shipping in 1 TB to 6 TB capacities; and the new WD Red Pro 3.5-inch hard drives which are ideal for medium to large business environments, are available in 2 TB to 4 TB capacities.

The WD Red hard drives have increased performance due to NASware 3.0, an enhanced version of WD’s original NASware® technology, designed to improve reliability and system performance. The Red’s also feature 3D Active Balance Plus, an enhanced balance control technology, which significantly improves overall drive performance and reliability.

The WD Red and WD Red Pro are available now and have three- and five-year limited regional warranties, respectively. Manufacturer’s suggested retail price (MSRP) for WD Red 5 TB (model #: WD50EFRX) is $249.00 USD, and $299.00 USD for 6 TB (model #: WD60EFRX). Pricing for WD Red Pro 2 TB (model #: WD2001FFSX) is $159.00 USD, $199.00 USD for 3 TB (model #: WD3001FFSX) and $259.00 USD for 4 TB (model #: WD4001FFSX).

More information can be found here and here.

Add-In: Drive Bender v2.1.5.0

Drive Bender Logo

Version of Drive  Bender has been released with the following change log:

  • [u] Improved the way Drive Bender attempts to recover from mount errors.
  • [u] Mounting a drive letter mount point is much faster.
  • [e] Added option to delay the drive online/offline notification. If the drives have reconnected before the period expires, no notifications are sent.
  • [e] Added balancing load detection which pauses balancing if the predefined threshold is exceeded.
  • [n] Added option to explicitly set the clearing landing zone schedule.
  • [b] The file system health monitor may try and duplicate the recycle bin, or display errors regarding invalid duplicated file in the recycle bin.
  • [b] A pool repair can fail if there is one or more drives connected to the pool that are not responding correctly.
  • [u] If a drive removal fails, the state of the drive is restored and is no longer left in a "removal pending" state.
  • [n] Have added an option to recycle the live logging connection (under the real time dialog).
  • [u] Changed the default minimum percent of free space required when using cascade balancing, from 15% to 5%.
  • [b] Fixed a bug with the UNC connection required for adding networked resources to a pool.
  • [b] When upgrading from v1 to v2 on Windows XP, an error message is displayed.
  • [b] EA’s Origin (game manager) throws an access denied error when downloading a to a pooled drive.
  • [b] Fixed a minor bug with CRC validation that can cause the validation to fail with an exception.

The direct download link is here, whilst further information on Drive Bender can be found here.

Add-In: StableBit Scanner v1.0.6.2636 Release Final

StableBit Scanner Icon

StableBit Scanner have released version Release Final for the original version of Windows Home Server (v1).

Continuously scans all of your hard drives, ensuring that every precious bit remains readable.It also monitors the on-disk SMART health parameters at all times and informs you at the first sign of trouble. If problems occur it tells you exactly which files were damaged when damage is detected and attempts partial or full recovery of damaged files.

This release final can be downloaded from here.
