HP N40L ProLiant MicroServer

HP have published the specs of the new N54L ProLiant MicroServer, in a 21 page PDF file. Here’s the overview:

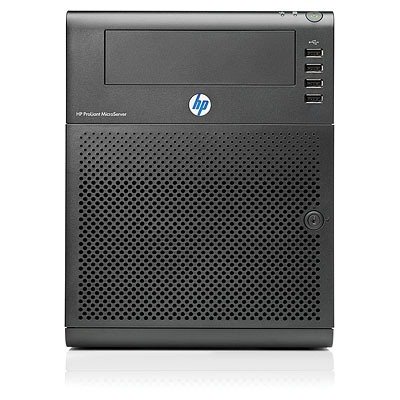

HP ProLiant MicroServer

AMD Turion™ II Neo N54L (2.2GHz)
AMD RS785E/SB820M chipset
Two (2) DIMM slots
2GB (1x2GB) Standard or 4GB (1x4GB)/8GB Maximum, using PC3-10600E DDR3 Unbuffered (UDIMM) ECC memory,
operating at max. 800MHz
Storage Controller:
Embedded AMD SATA controller with RAID 0, 1
Embedded AMD eSATA controller for connecting external storage devices via the eSATA connector in the rear of the server
Internal Drive Support:
4 Internal HDD Support
Maximum internal SATA storage capacity of up to 8.0TB (4 x 2TB 3.5" SATA drives)
Network Controller:
Embedded NC107i PCI Express Gigabit Ethernet Server Adapter
Expansion Slots:
Slot 1: PCI-Express Gen 2 x16 connector with x16 link
Slot 2: PCI-Express Gen 2 x1 connector with x1 Link
Slot 2-2: PCI-Express x4 slot for optional management card
USB 2.0 Ports:
Seven (7) USB 2.0 ports: 4 front , 2 rear, 1 internal (for tape)
Power Supply:
150 Watts Non-Hot Plug, Non Redundant Power Supply
Optional MicroServer Remote Access Card
Operating System:
Supports Windows and Red Hat Linux
Form Factor:
Ultra Micro tower

The N54L is available starting at $389 for the 704941-001 model.
