MediaSmart Server LED Management for WHS2011

A developer by the name of Lewis has made a driver that makes the lights work correctly on the HP MediaSmart Server if you have upgraded it to WHS 2011.

After upgrading these to WHS 2011, and without this driver the HDD lights would stay off and the system light would blink all the time. This driver replicates the LED management as it was with the original HP software.

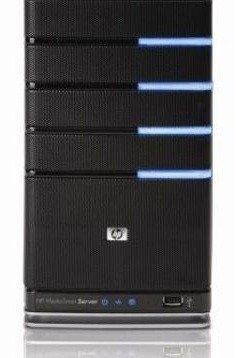

HO MediaSmert Server LEDs

Compatible Hardware:

  • EX48x tests are positive
  • EX49x tests look promising
  • X510 should also look promising if it is really the same hardware as EX49x
  • Acer H340 should have a test version this weekend and it looks promising
  • H341 is possibly compatible with the H340 (like EX49x to EX48x) so it might also be a candidate

Finally the developer needs the following registry info from an Acer H341 and HP X510 owner, so please help out if you can:

[HKEY_LOCAL_MACHINE\HARDWARE\DESCRIPTION\System\BIOS]

More details on are available from both of these locations:

Share this WHS Article with Others:

| |

Comments (6)

Trackback URL | Comments RSS Feed

  1. Thomas says:

    What a pitty… EX47x hardware ist not supported :(

  2. Sébastien says:

    Hello,
    Here is the files for :
    HP X311 running french WHS 2011 : http://dl.dropbox.com/u/18528334/WHS/x311.zip
    HP X510 running french WHS v1 : http://dl.dropbox.com/u/18528334/WHS/x510.zip
    Hope it can help !
    S.

  3. Chris says:

    Acer H341:

    [HKEY_LOCAL_MACHINE\HARDWARE\DESCRIPTION\System\BIOS]
    “BiosMajorRelease”=dword:00000008
    “BiosMinorRelease”=dword:00000010
    “ECFirmwareMajorRelease”=dword:000000ff
    “ECFirmwareMinorRelease”=dword:000000ff
    “BaseBoardManufacturer”=”Acer”
    “BaseBoardProduct”=”Aspire easyStore H341″
    “BaseBoardVersion”=”-1″
    “BIOSReleaseDate”=”03/31/2010″
    “BIOSVendor”=”American Megatrends Inc.”
    “BIOSVersion”=”P03″
    “SystemFamily”=”To Be Filled By O.E.M.”
    “SystemManufacturer”=”Acer”
    “SystemProductName”=”Aspire easyStore H341″
    “SystemSKU”=”To Be Filled By O.E.M1″
    “SystemVersion”=”Reserved”

    • Chris says:

      I tried the existing program. Didn’t work. Seems that there are some differences between H340 and H341.

  4. Mosaik says:

    [HKEY_LOCAL_MACHINE\HARDWARE\DESCRIPTION\System\BIOS]
    “BiosMajorRelease”=dword:00000008
    “BiosMinorRelease”=dword:00000010
    “ECFirmwareMajorRelease”=dword:000000ff
    “ECFirmwareMinorRelease”=dword:000000ff
    “BaseBoardManufacturer”=”Acer”
    “BaseBoardProduct”=”Aspire easyStore H341″
    “BaseBoardVersion”=”-1″
    “BIOSReleaseDate”=”04/22/2010″
    “BIOSVendor”=”American Megatrends Inc.”
    “BIOSVersion”=”P04″
    “SystemFamily”=”To Be Filled By O.E.M.”
    “SystemManufacturer”=”Acer”
    “SystemProductName”=”Aspire easyStore H341″
    “SystemSKU”=”To Be Filled By O.E.M.”
    “SystemVersion”=”Reserved”

  5. Dirk says:

    HP Data Vault x312:

    [HKEY_LOCAL_MACHINE\HARDWARE\DESCRIPTION\System\BIOS]
    “BiosMajorRelease”=dword:00000008
    “BiosMinorRelease”=dword:00000010
    “ECFirmwareMajorRelease”=dword:000000ff
    “ECFirmwareMinorRelease”=dword:000000ff
    “BaseBoardManufacturer”=”Wistron”
    “BaseBoardProduct”=”X3xx”
    “BaseBoardVersion”=”A”
    “BIOSReleaseDate”=”03/16/2010″
    “BIOSVendor”=”American Megatrends Inc.”
    “BIOSVersion”=”X3xx 1.02″
    “SystemFamily”=”X3xx”
    “SystemManufacturer”=”HP”
    “SystemProductName”=”Data Vault”
    “SystemSKU”=” ”
    “SystemVersion”=”A”
