WHS Travla RackMount Chassis

Mini-ITV enclosure manufacturer Travla have a great case which is great for Windows Home Server. The 1U 19" rackmount case incorporates 4 hot-swappable 3.5" SATA drive caddies and can be further expanded thanks to space for a further 2 x 2.5" drive bays as well as a slim CD/DVD bay. Travla recommend using the VIA SN10000 or SN18000 mini-ITX motherboard in this chassis, but the inclusion of a universal I/O shield makes using other mini-ITX boards possible too.

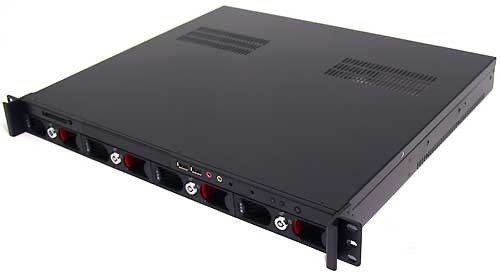

Travla TE-1160

Specifications:

  • 1 x Power switch
  • LED indicators: 1 x disk activity  1 x power on
  • 1 x Audio In/Out
  • 1 x RS-232
  • 2 x USB port
  • 1 x Compact flash slot (does not include CF card reader)
  • Optical drive support: 1 x slim type
  • I/O shield design: 2 x Travla patented universal I/O shield
  • 2 x PCI Expansion slot
  • System cooling: 2 x 40mm fan
  • Memory height: Accept standard size
  • Internal HDD bracket: 2 x 2.5" IDE/SATA brackets
  • External HDD tray: 4 x 3.5" Serial ATA trays
  • Dimensions: 19"(482.6mm)x1.75"(44.45mm)x15"(381mm)
  • Applied M/B form factor: Mini-ITX
  • Material: Heavy duty cold-rolled steel
  • Surface: Black wet paint with texture coat
  • Colour: Black

The chassis costs approx $349 (£270 UK)

More information is available here.
