Windows Home Server V2 (Vail) Part 1

ITS HERE! Your first chance to see the new public preview beta of Microsoft’s next Windows Home Server Codename “VAIL” released today. Over the next few days we will be bringing you an insight into the new OS day by day, starting with Installation, setup and the new dashboard which replaces the old console.

Now I know some off you have already seen what I am about to show you, but stick with me anyway, I guarantee I am going to show you something that you haven’t already seen.

I have included as many screenshots as possible showing everything VAIL has to offer, without you having to install it yourself.

There are a few pre-requisites to note before installation:

  1. Read the release notes before installing.
  2. VAIL is a 64bit only Operating System (check the system requirements and make sure you meet them).
  3. VAIL cannot be used in a RAID formation, if you are using RAID you are advised to turn this off.
  4. Do not install on a headless machine.
  5. Do not install on a production machine.

I can’t stress these points highly enough, you really will fall fowl if you don’t follow this advice.

System Requirements

Windows Server Code Name “Vail” server software is 64-bit only operating systems.

You can install the server software either manually or unattended.

  • 1.4 GHz x64 processor.
  • 1 GB RAM
  • At least one 160 GB hard drive.
  • Product keys are not required for this release.
  • NTFS is the only supported file system.
Supported Networking Configuration:

a. Your server computer must be connected via a network cable to a router.

b. The router should be a UPnPTM certified device, but it is not required.

c. The router should be in the 192.168.x.x subnet, but it is not required.

The following operating systems for home computers are supported to work with Windows Server Code Name “Vail”:

The Windows 7 Operating System

  • Windows7 Home Basic (x86)
  • Windows7 Home Premium (x86)
  • Windows7 Professional (x86 and x64)
  • Windows7 Ultimate (x86 and x64)
  • Windows7 Starter (x86 and x64)

The Windows Vista Operating System

  • Windows Vista Home Basic with Service Pack 2 (SP2) (x86)
  • Windows Vista Home Premium with SP2 (x86)
  • Windows Vista Business with SP2 (x86 and x64)
  • Windows Vista Ultimate with SP2 (x86 and x64)
  • Windows Vista Starter with SP2 (x86 and x64)

The Windows XP Operating System

  • Windows XP Home with Service Pack3 (SP3)
  • Windows XP Professional with SP3
  • Windows XP Media Center Edition2005 with SP3
  • Windows XP Starter Edition with SP3

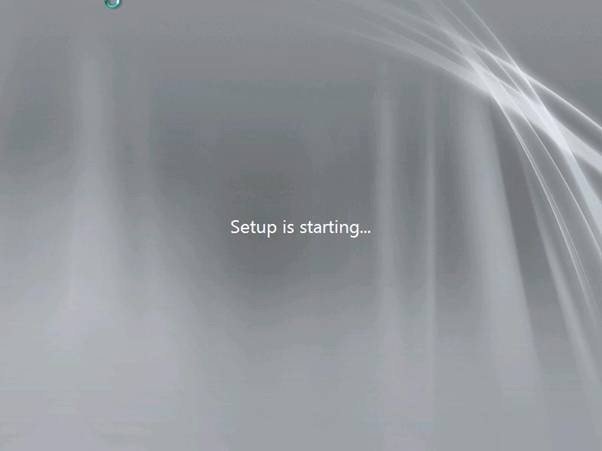

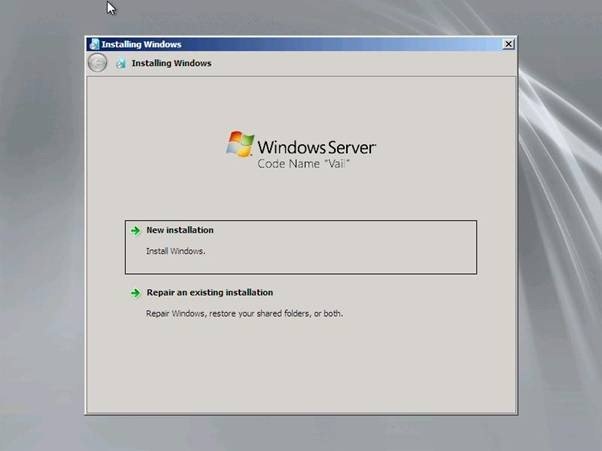

First of all download the setup ISO direct from Microsoft and burn to a DVD, then pop the disk in to your test machines drive and boot the machine. The installation is very easy the only thing you need to watch out for is when it warns you that it is going to format your hard drive.

clip_image002  clip_image004

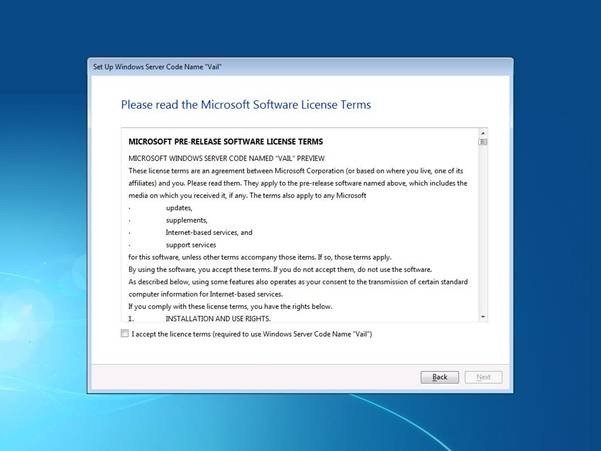

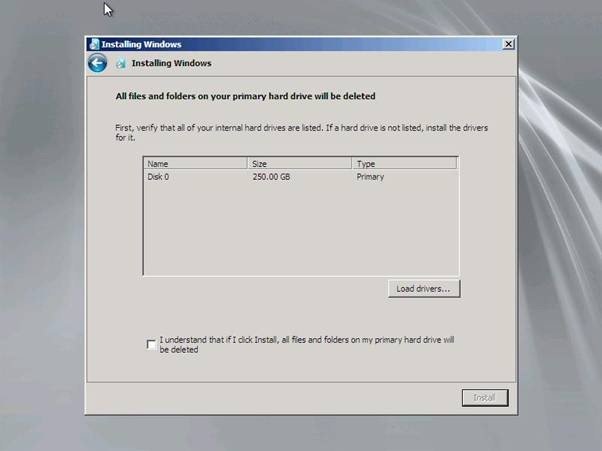

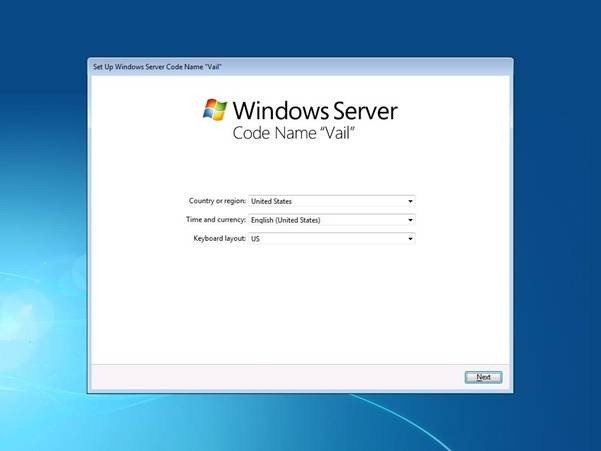

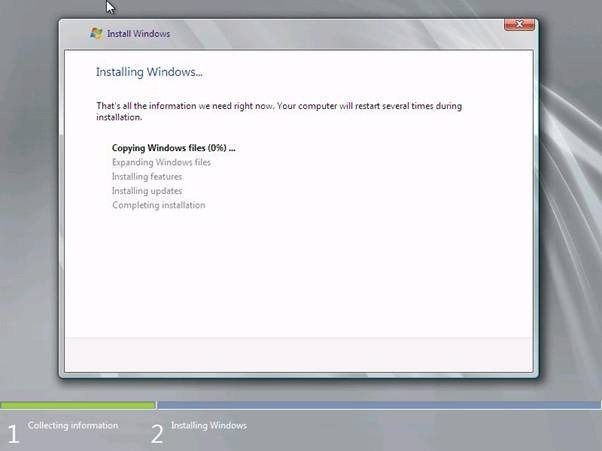

This is when it asks to format your hard drive, there is no way around this, it has to be done in order for VAIL to add the drive to storage pool, this works in exactly the same way as on the current WHS install, so make sure you have a backup of all your data otherwise you are going to have a struggle trying to retrieve it.

clip_image006  clip_image008  clip_image010

clip_image012  clip_image014

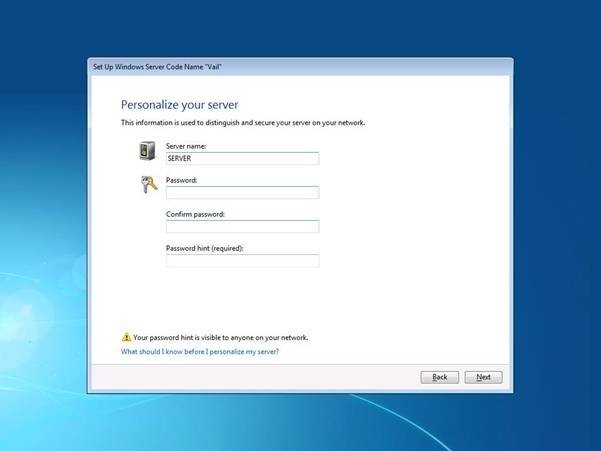

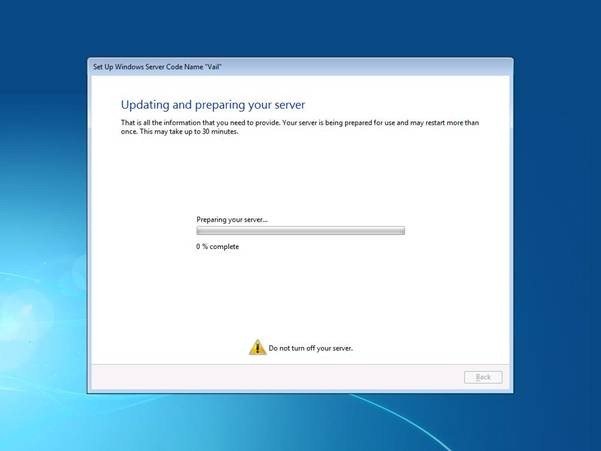

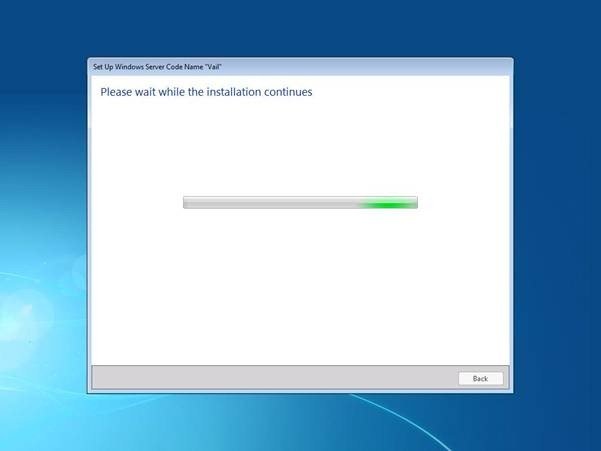

Fill in the name you want to give VAIL and a password; this is the password you will use for the new dashboard.

clip_image016  clip_image018  clip_image020

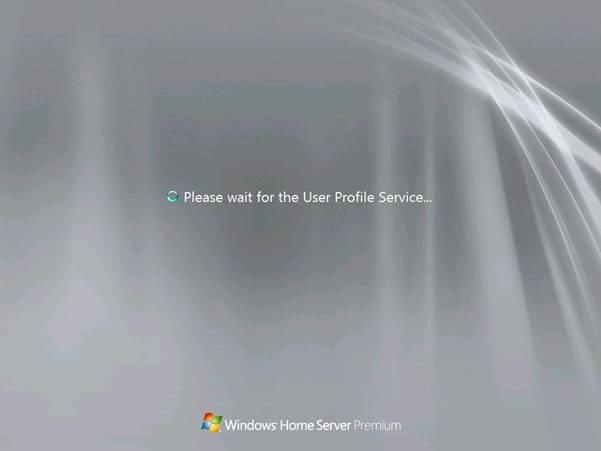

Now at this point I had some problems during install, it sat on this screen for more than an hour and a half, I had to use the Task Manager to end this and then launch explorer.exe, from what I can tell it has had no adverse effects but this just goes to show how much this OS is not ready yet.

clip_image022

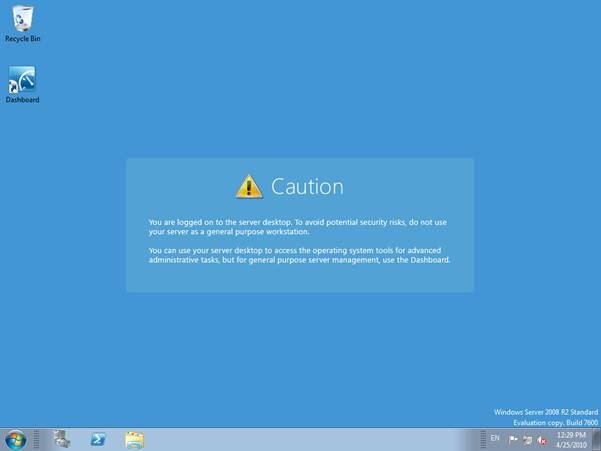

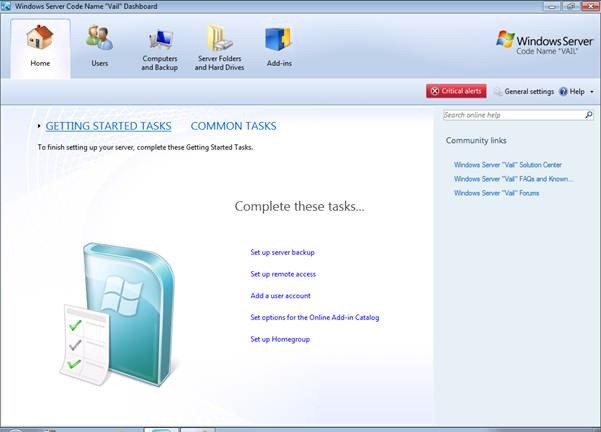

Once installed you are presented with the Windows Server 2008 R2 desktop, with the only difference being the Dashboard icon on the desktop, double clicking presents you with the new Dashboard.

clip_image024

At the moment the new dashboard very much reassembles the old console, I am sure that before the release RTM release this will have a drastic change.

The dashboard gives you some getting started tasks and common tasks when first logging in, I am not sure whether this is something useful or whether the WHS team just have been unable to find something more suitable for this space, so they have put anything here just so it isn’t empty, and the other thing, there’s is
no option to turn these off, I think that is going to get a bit annoying very quickly.

clip_image026

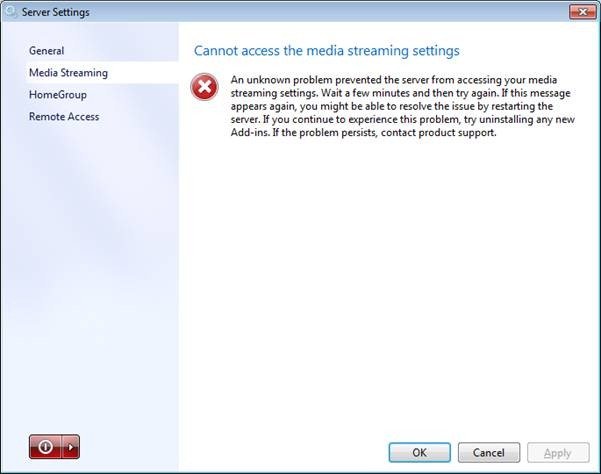

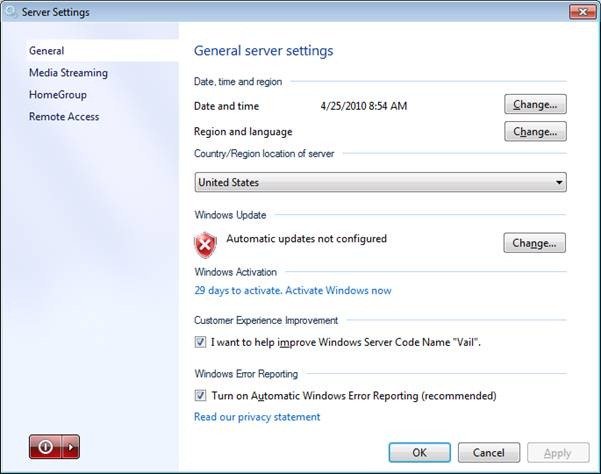

Clicking general settings brings you to your Server Settings, again this looks very much like the settings section in the WHS Console, and also the same options are available.

clip_image028

Now I have yet to find out what exactly is behind this section because as yet I have been completely unable to get it working. I am told there is going to be options to allow certain pictures, music and videos to be streamed across the internet, and that certainly does make sense as you will see later on there is a section in the VAIL default website called Media Library were you can watch Pictures and Movies and listen to Music.

clip_image030

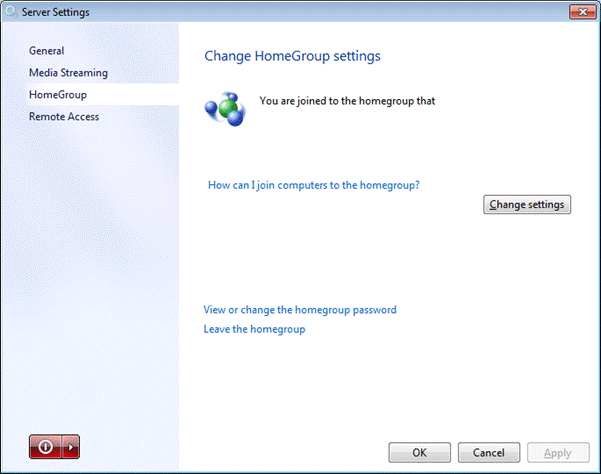

HomeGroups have now been integrated and permissions can be given to people belonging to the home group whether they have a WHS account or not, as soon as VAIL was added to the server it immediately picked my printer and installed it. The one known issue Microsoft is aware of with HomeGroups is that none of the shares are displayed in windows 7 libraries; this may be resolved with the public beta be-aware of it if they aren’t there.

clip_image032

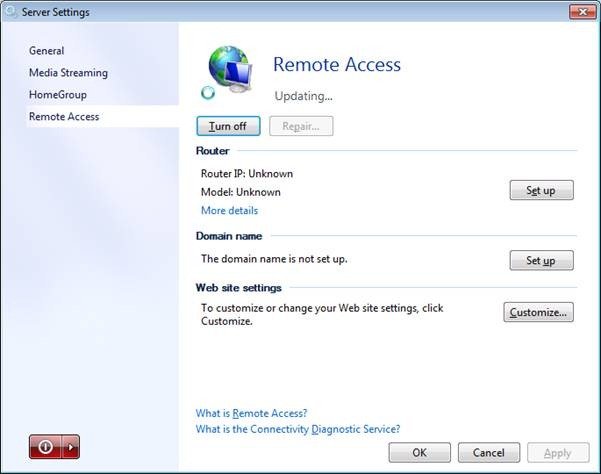

Remote access has had some changes with DYNDNS.org and Go Daddy being added as a domain updaters, this now means you aren’t restricted to http://yourdomain.homeserver.com you can now have http://yourdomain.dyndns.org allowing a little more flexibility. There has also been some changes to the way your WHS website looks, you can now customise the site logo, background and add custom website links to your favourite sites.

clip_image034

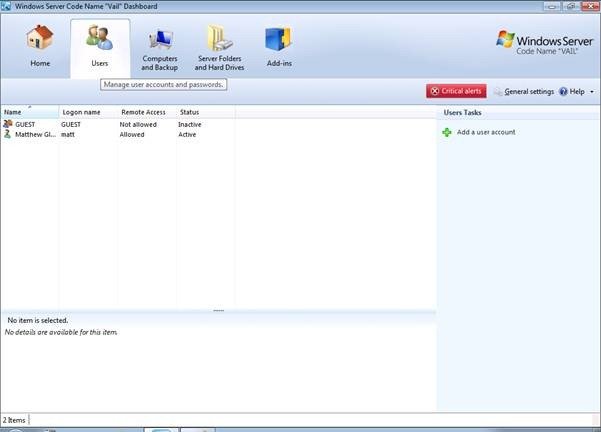

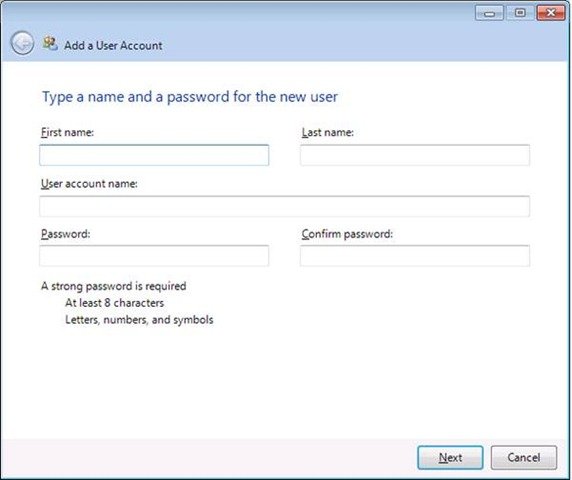

Very little has changed with the way the users section is used and displayed, adding an account is done in the exact same way.

clip_image036  clip_image038  clip_image040

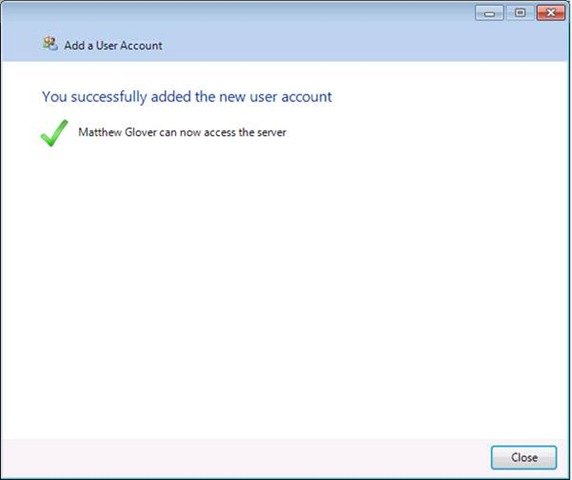

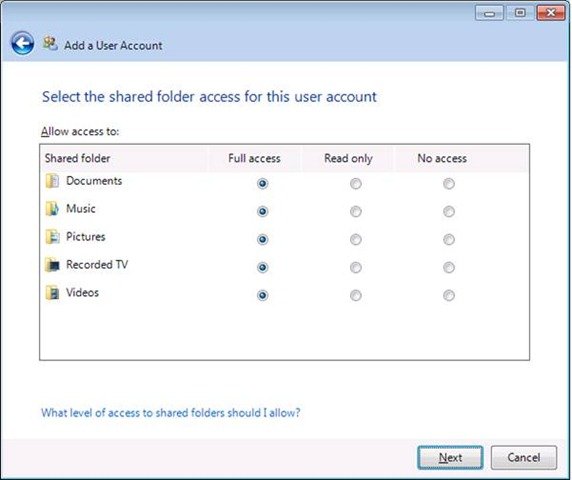

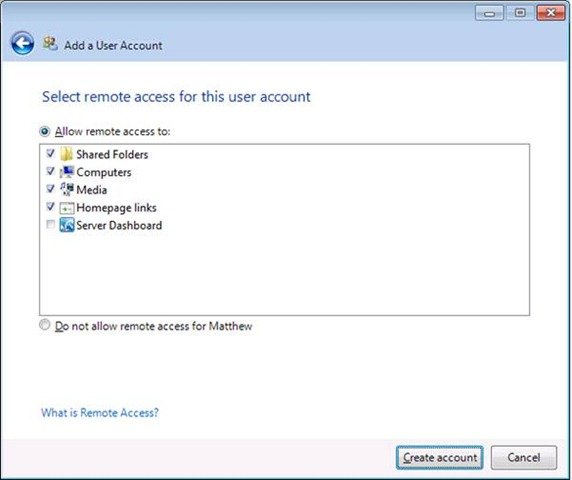

The only changed to really mention is during setting up a user now have more control over a users access rights to remote access, see above.

clip_image042  clip_image044

Computers and backups is where I think there has been the most change, the server itself now shows here whether the server is being backed up or not. Adding a new machine is different to, gone is the software in the software share, in fact the whole software share has been removed altogether; you now go to http://yourservername/connect in order to add a machine to VAIL.

clip_image046

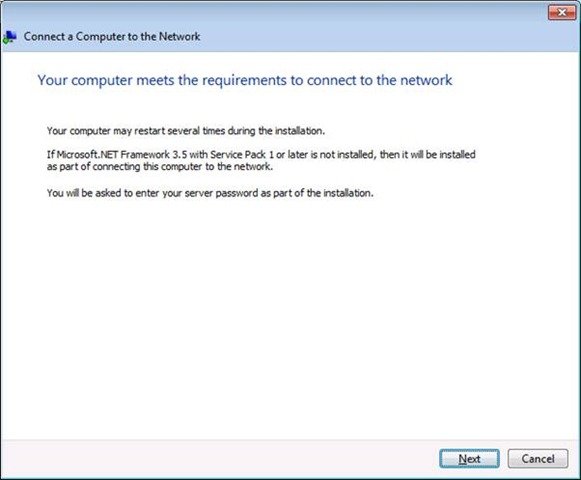

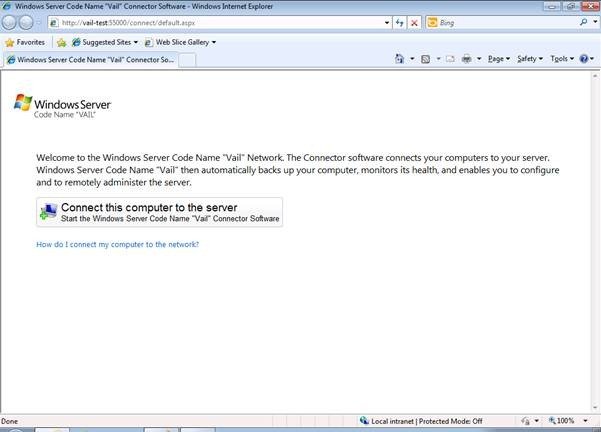

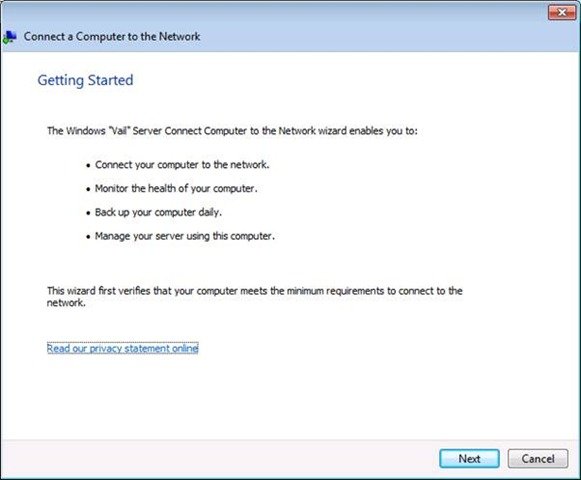

Clicking connect this computer will run you through adding your machine to VAIL.

clip_image048  clip_image050  clip_image052

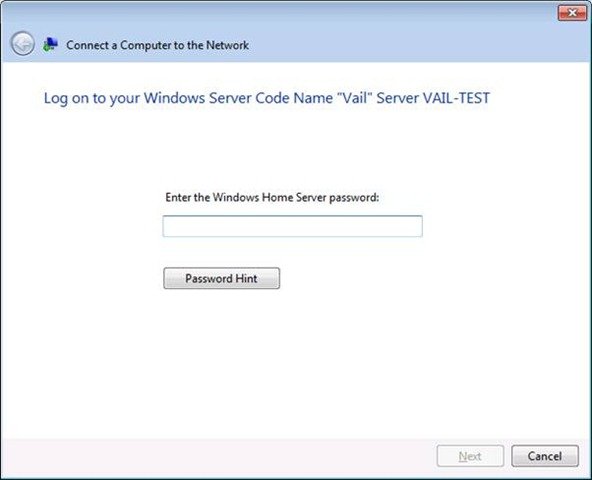

Enter your Sever password here.

clip_image054

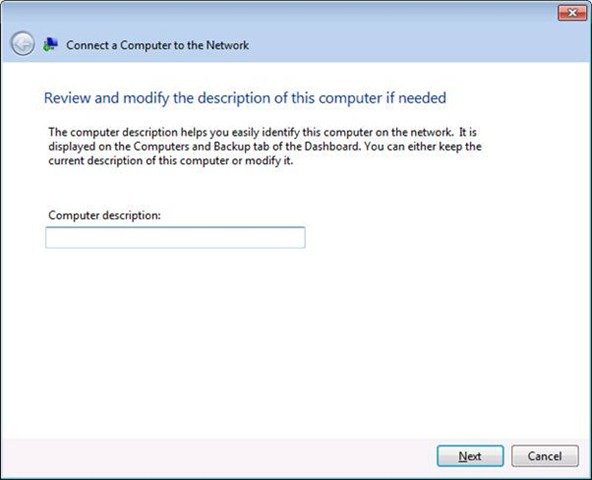

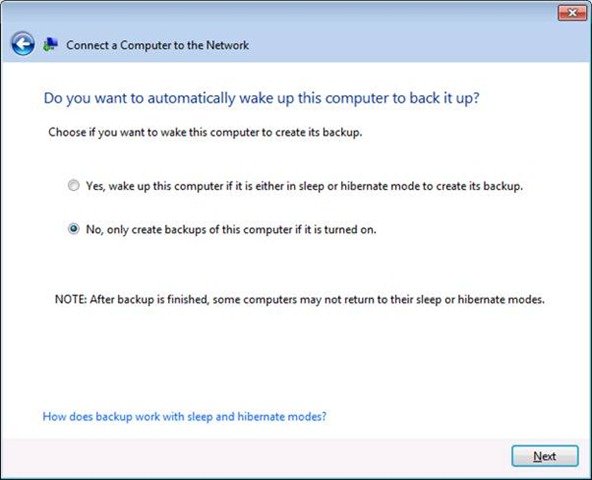

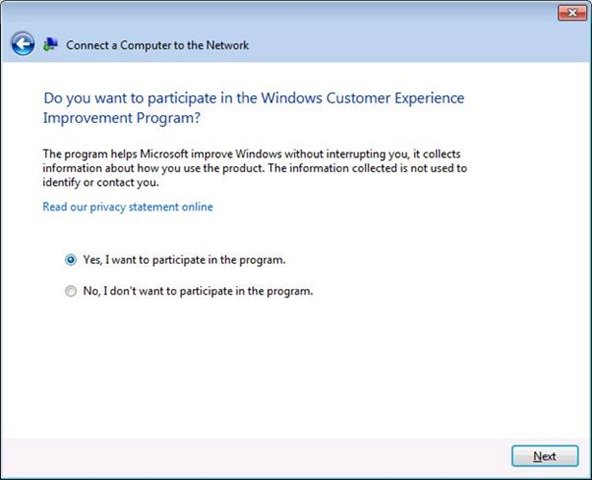

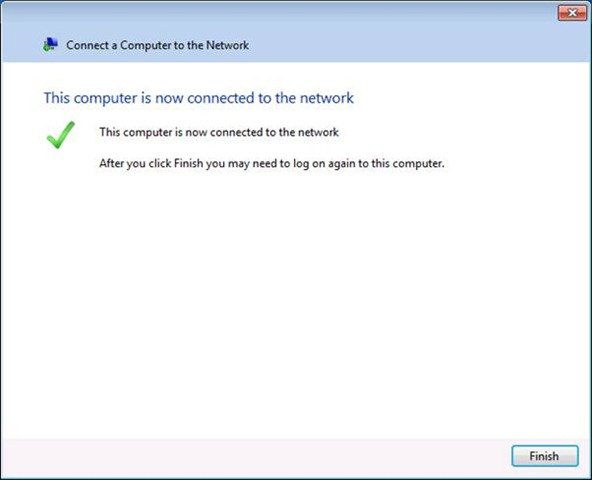

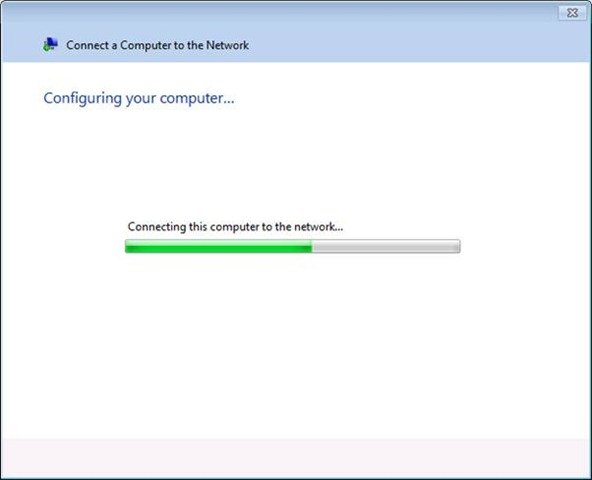

You can now add a description for each machine allowing for better naming conventions such as “James machine in the study”.

clip_image056  clip_image058  clip_image060

clip_image062  clip_image064  clip_image066

Once you have added your machine to the network you will now see 3 icons on the desktop Dashboard, Launch pad and Share on Server.

clip_image068

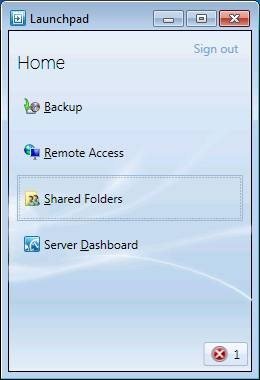

Opening the launch pad you can see 4 options Backup, Remote Access, Shared Folders and Server Dashboard.

clip_image070

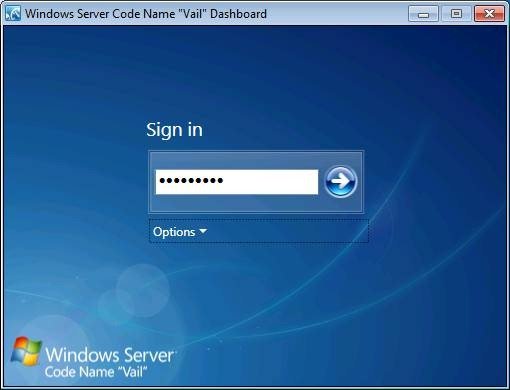

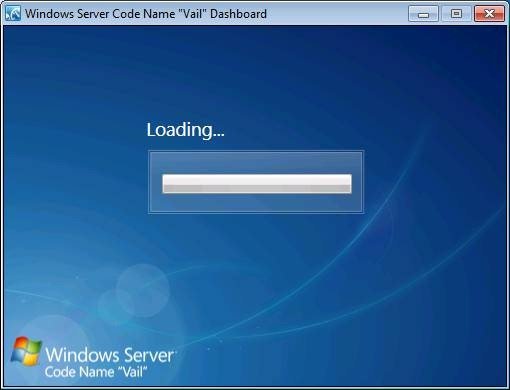

Clicking Dashboard or double clicking Dashboard on the desktop will ask you to sign in.

clip_image072  clip_image074

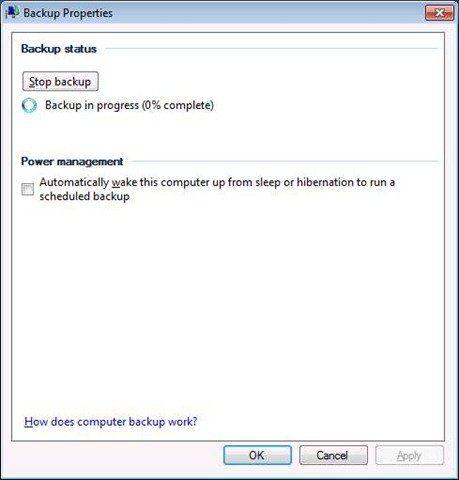

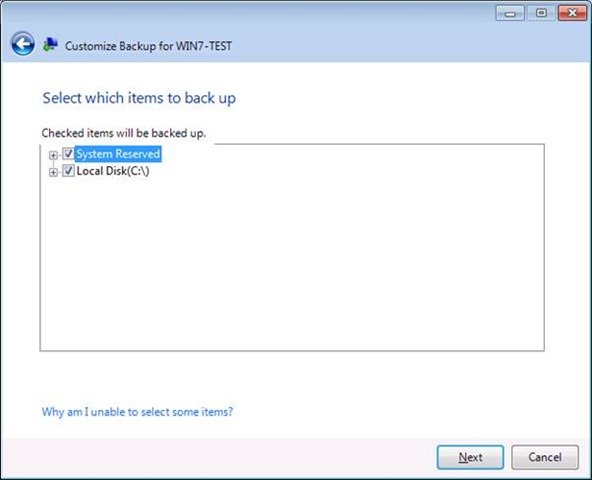

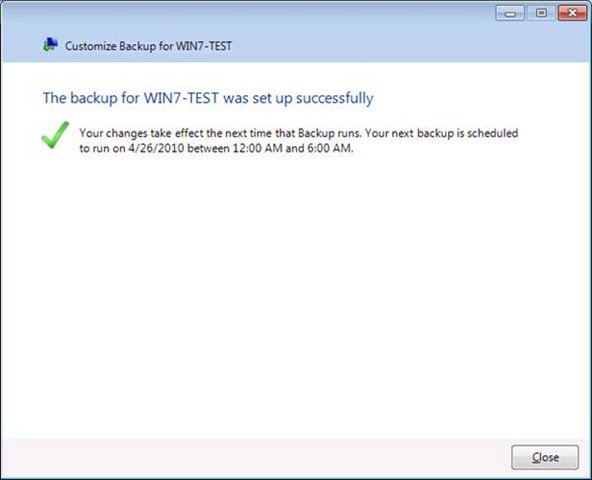

Clicking Backup will either ask you to configure the backup for that machine or if you have already done that it will go ahead and backup. Now one option I have been unable to find is where to configure what time I want the backups doing, it is no longer in General Settings and I can’t find anything in the backup section, I am presuming this is something that will be brought in soon.

clip_image076  clip_image078  clip_image080

clip_image081

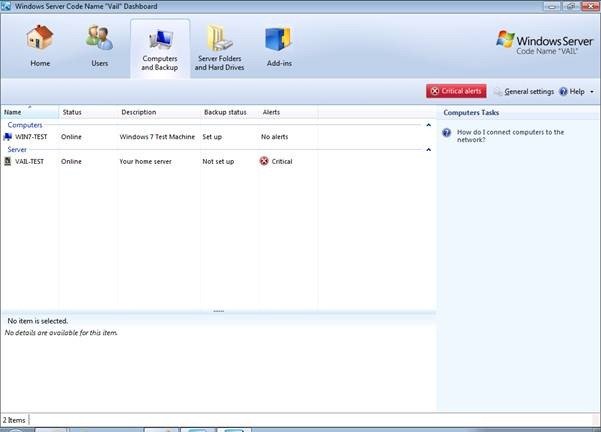

You will be able to see your machine added to the dashboard, it is worth noting at this point that 2 people can now access the dashboard at the same time, rather than just the 1 in the current WHS console.

clip_image083

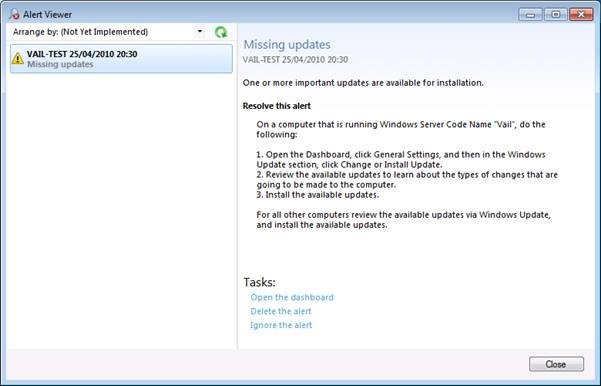

This is the new alert viewer, from this message you will be able to see that VAIL now informs you if your WHS has not got the latest windows updates, unfortunately you can apply windows updates direct from here but maybe this something that may come in the future.

clip_image085

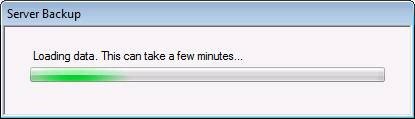

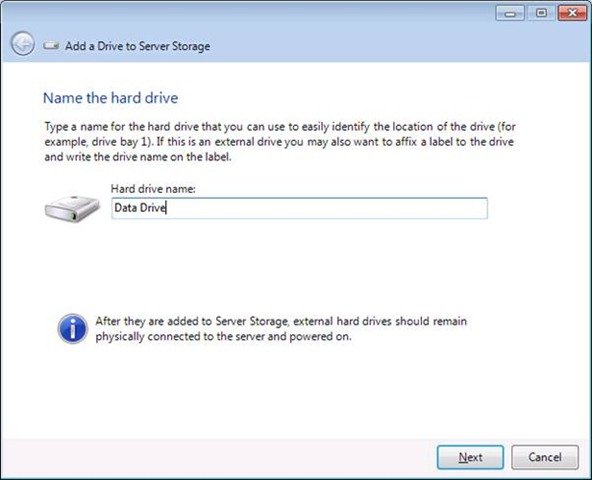

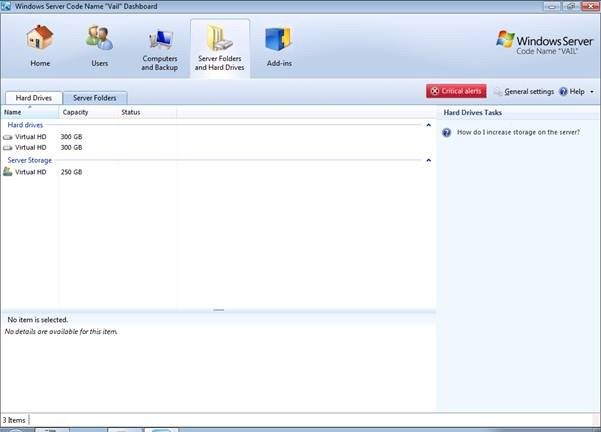

Shared folders and server storage have now been combined, you can from here see I have got 2 Hard Drives not added to the server storage, clicking one you will get options on the right to either add the drive to server storage or setup server backup.

clip_image087  clip_image089  clip_image091

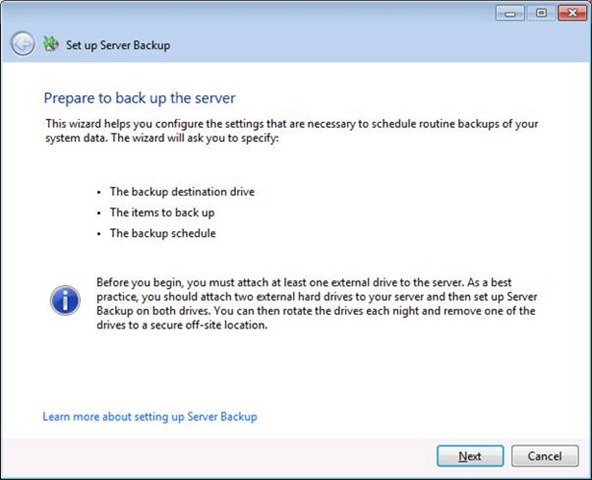

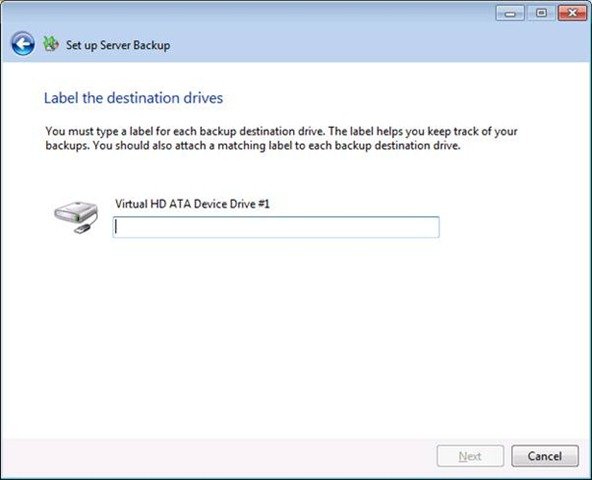

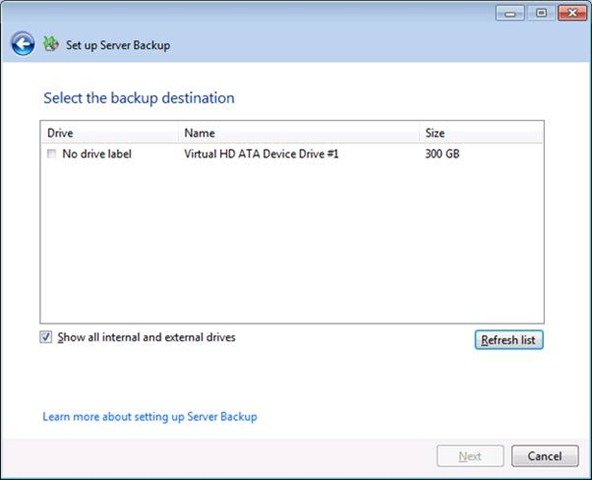

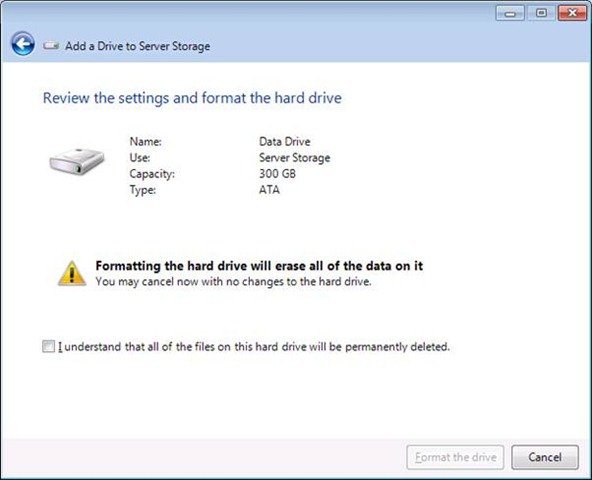

This part is especially useful for anyone who uses WHS on something like Hyper-V server or any virtualisation environment, because WHS previously just picked the drive up and named it Virtual HDD, now you can name each drive individually so you always know what each drive is doing.

clip_image093  clip_image095  clip_image097

clip_image099

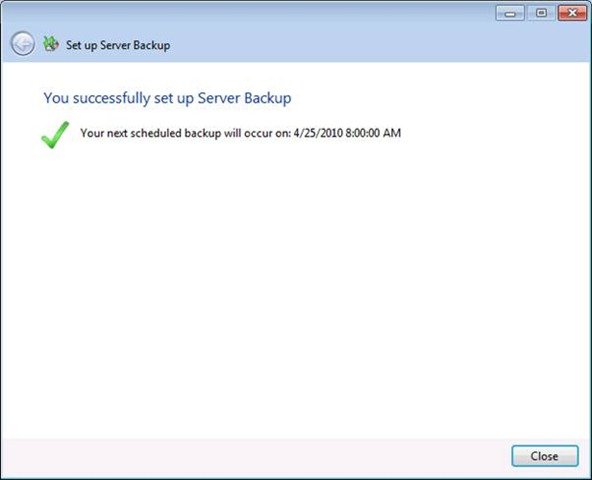

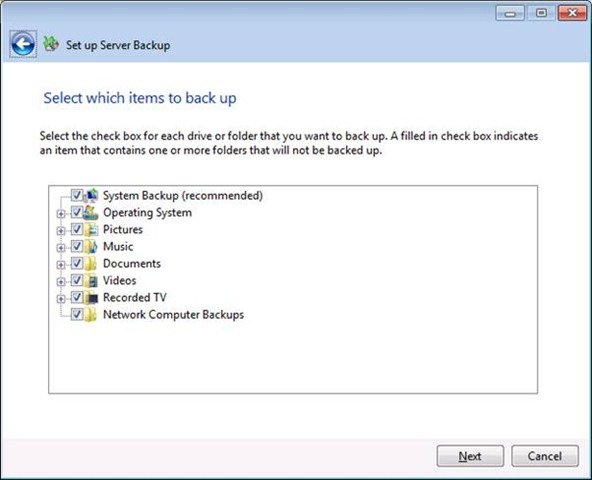

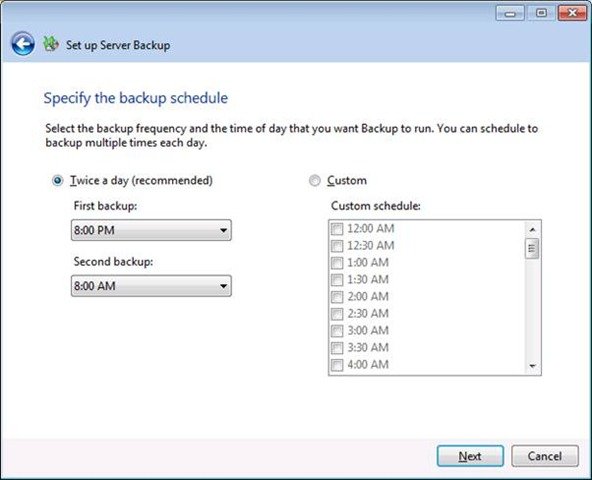

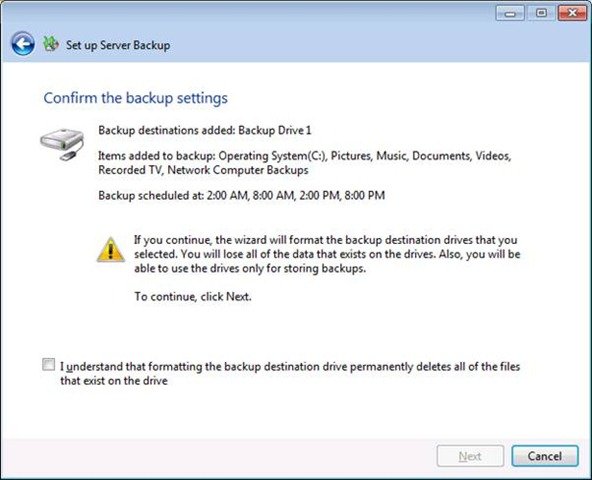

Now you can customise how often the server is backed up I personally would be looking for my server to backup every 6 hours that way it is done 4 times a day and in the event of hardware failure you will near as damn it have the latest data.

clip_image101

No longer have you got to select individual shares; you can backup what you want as and when you want.

clip_image103  clip_image105  clip_image107

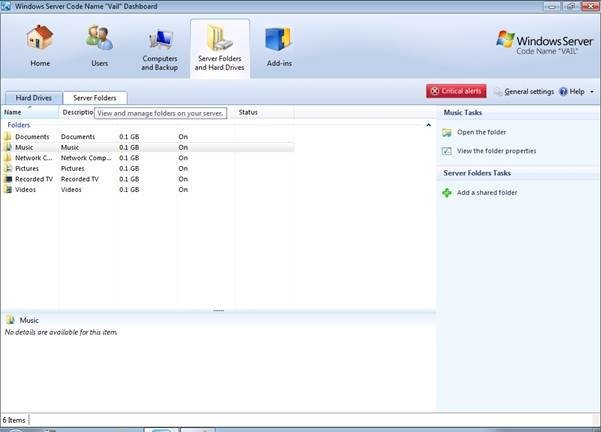

clip_image109

Adding storage is just as easy as before, “click add shared folder” run through the wizard settings permissions for each person and you’re done.

clip_image111

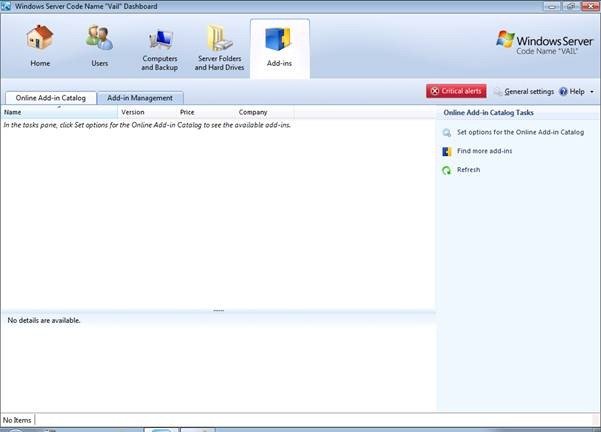

Unsurprisingly there is no add-ins to look at other than a Microsoft test add-in, for now this is a section will have to cover when there is new add-ins. There’s something we can tell from this screenshot and that is Microsoft added an online add-in catalogue, so maybe Microsoft are going to regulate the add-in section more.

If that is the case and Microsoft do regulate I think it is a good idea, some websites have tried to make it easier for user to see all the add-ins on one page and also there is a add-in to show add-ins, but it is all too much for some people and I think it leads to some people just not looking for add-ins at all, this can only be a good thing, but then again it may not even happen.

That’s it for part 1, I will be posting part 2  Wednesday 28th May, and I will be looking at the WHS Website, Remote Access and final thoughts.

Matthew Glover
www.matthewglover.co.uk
