Artigo A2000 Barebones Server

Launched at the 2009 Consumer Electronics Show (CES), the A2000 is a barebones server unit, which means that it comes as a case complete with motherboard and power supply, but without RAM, disks or an operating system.

It’s powered by the VIA C7-D  processor running at 1.5GHz and comes with the VX800 chipset. The VIA ARTiGO A2000 uses a custom Nano-ITX motherboard. On Via’s own website they state that the motherboard is “optimized for system stability in always-on home server, streaming and download applications. Its silent ball-bearing fan ensures that the system is remains sufficiently cooled without creating unwanted noise.”. The implication here being that VIA have purposely designed the unit to work as a Windows Home Server unit.

It features one slot for up to 2GB of DDR2 RAM, two 3.5 inch SATA drive bays, 3 USB ports and a gigabit Ethernet. The system retails for £247 in the UK.

System Specification

  • CPU: 1.5GHz VIA C7®-D processor
  • Chipset: VIA VX800 Unified Digital Media IGP chipset
  • Memory Support: 1 x DDR2 SO-DIMM Socket (up to 2 GB)
  • Hard Disk Support: 2 x 3.5” SATA-II
  • Bootable SSD: 1 x CompactFlash socket (supports DMA mode)
  • USB Ports: 3 x USB 2.0 ports (1 on the front panel)
  • LAN Port: 1 x Gigabit RJ-45 LAN port with LED
  • Audio: Built-in high definition audio controller
  • Audio Ports: 1 x MIC/Line-in, 1 x Line-out
  • Display Port: 1 x VGA port
  • Front LED: LAN active, LAN speed, power, HDD active, WLAN active
  • System Cooler: 8 cm low-noise ball-bearing fan
  • Dimensions: 5.3” x 4.5” x 10.2” / 135 x 115 x 259 mm (W x H x D)
  • Power: 100~240 V AC/DC adapter

Artigo Unboxing Video

[youtube=http://www.youtube.com/watch?v=BVbntTCoAGU]

Pictures

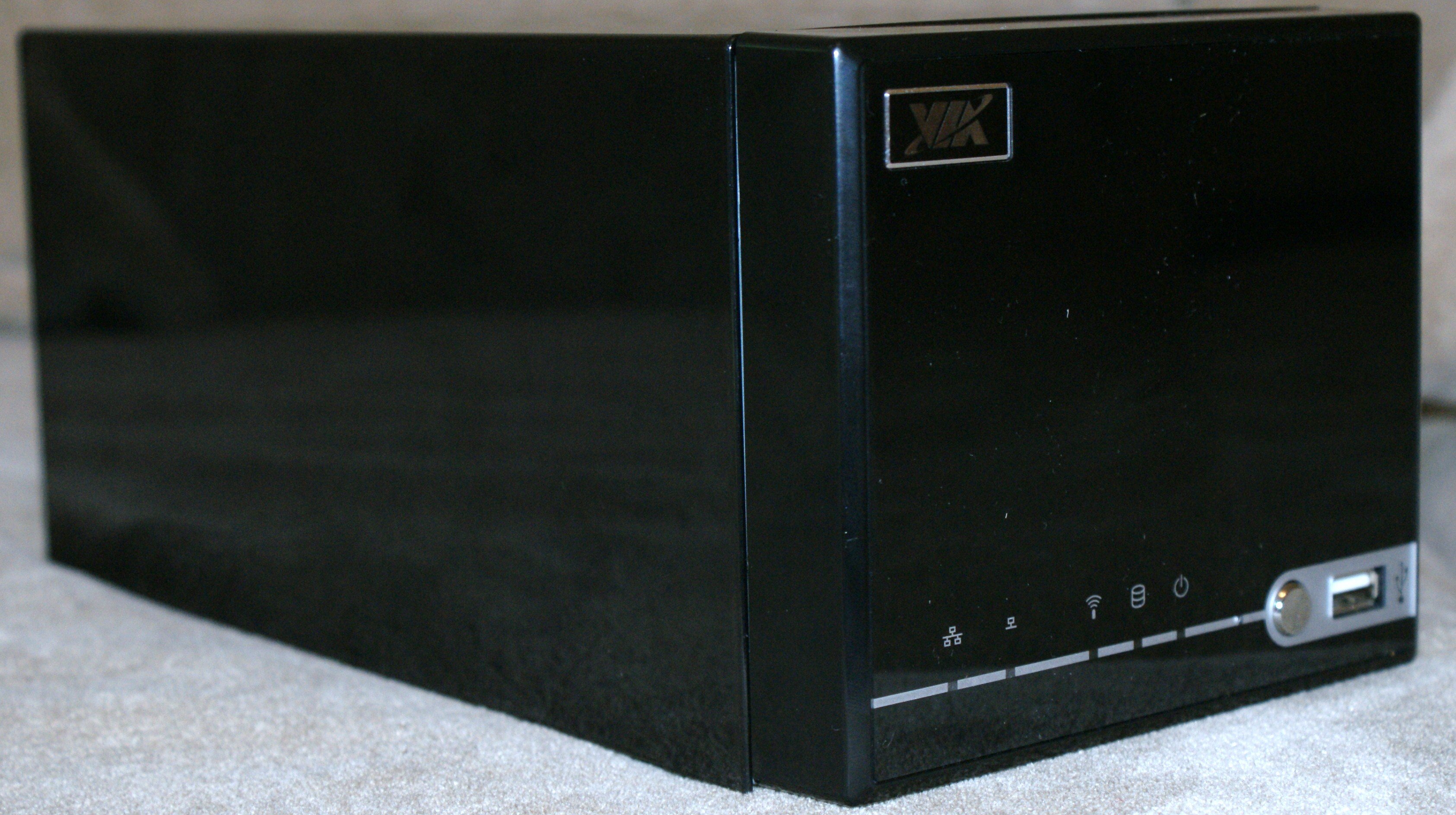

DSC06645

Gloss black unit prone to picking up fingerprints!

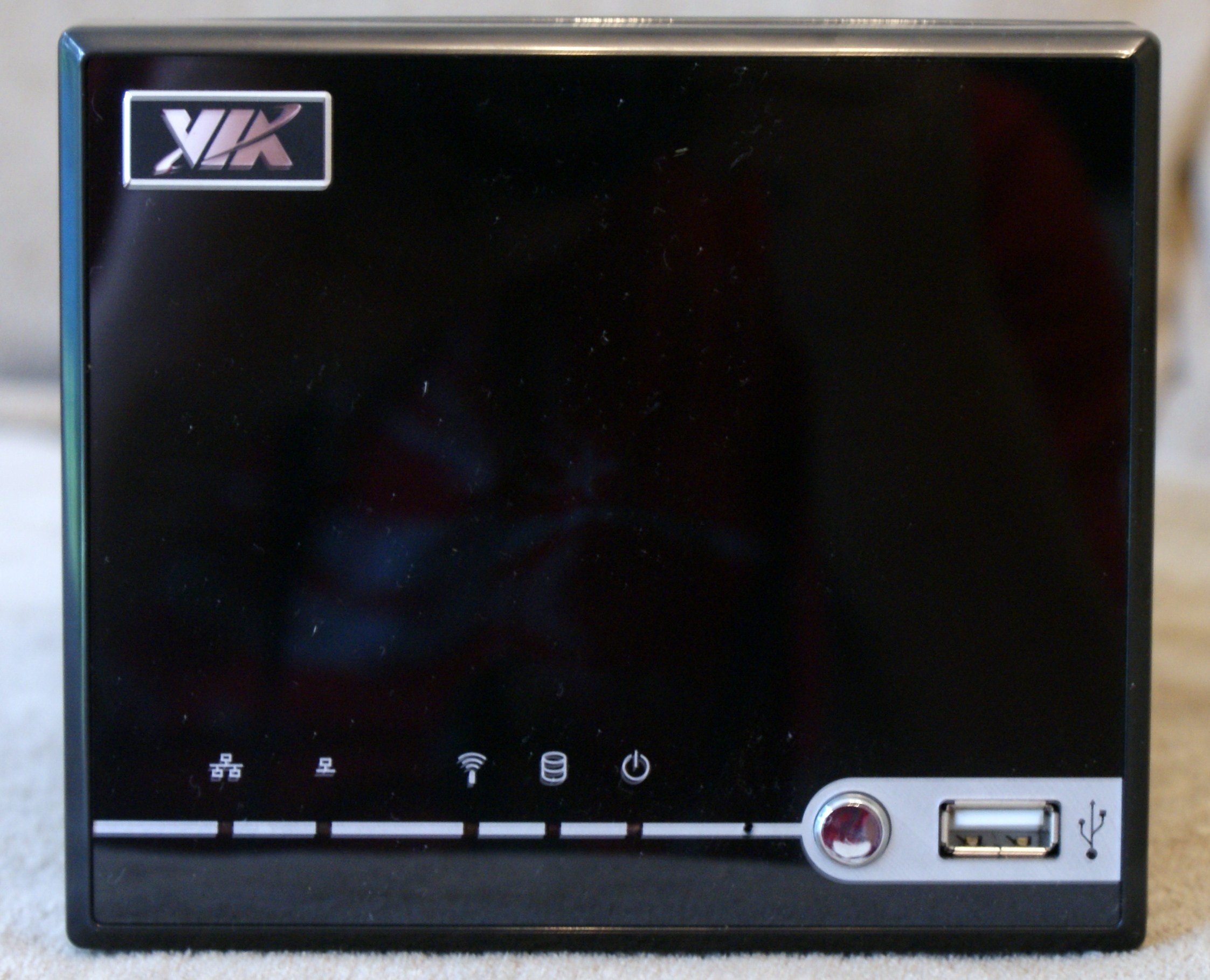

DSC06643

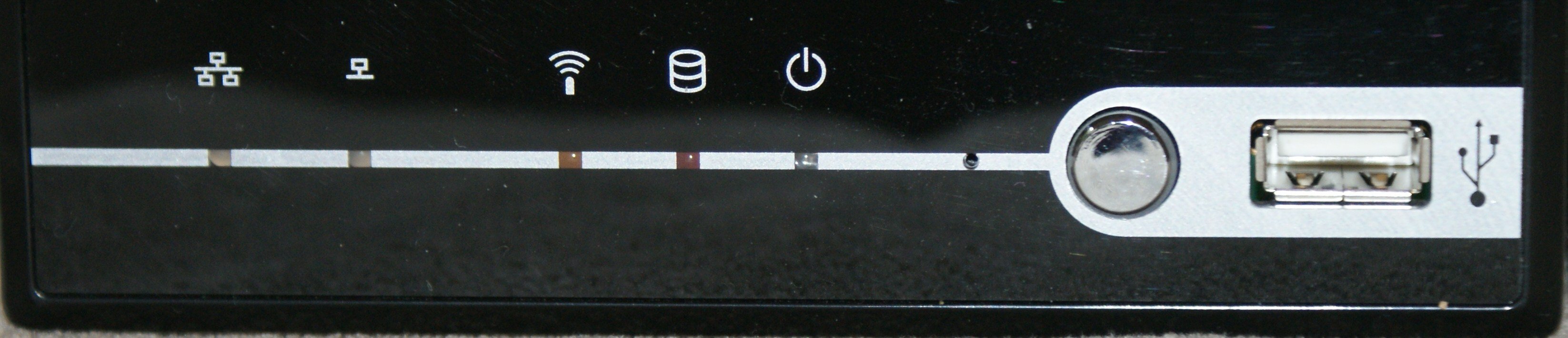

Close up on the front of the unit

DSC06646

Side view

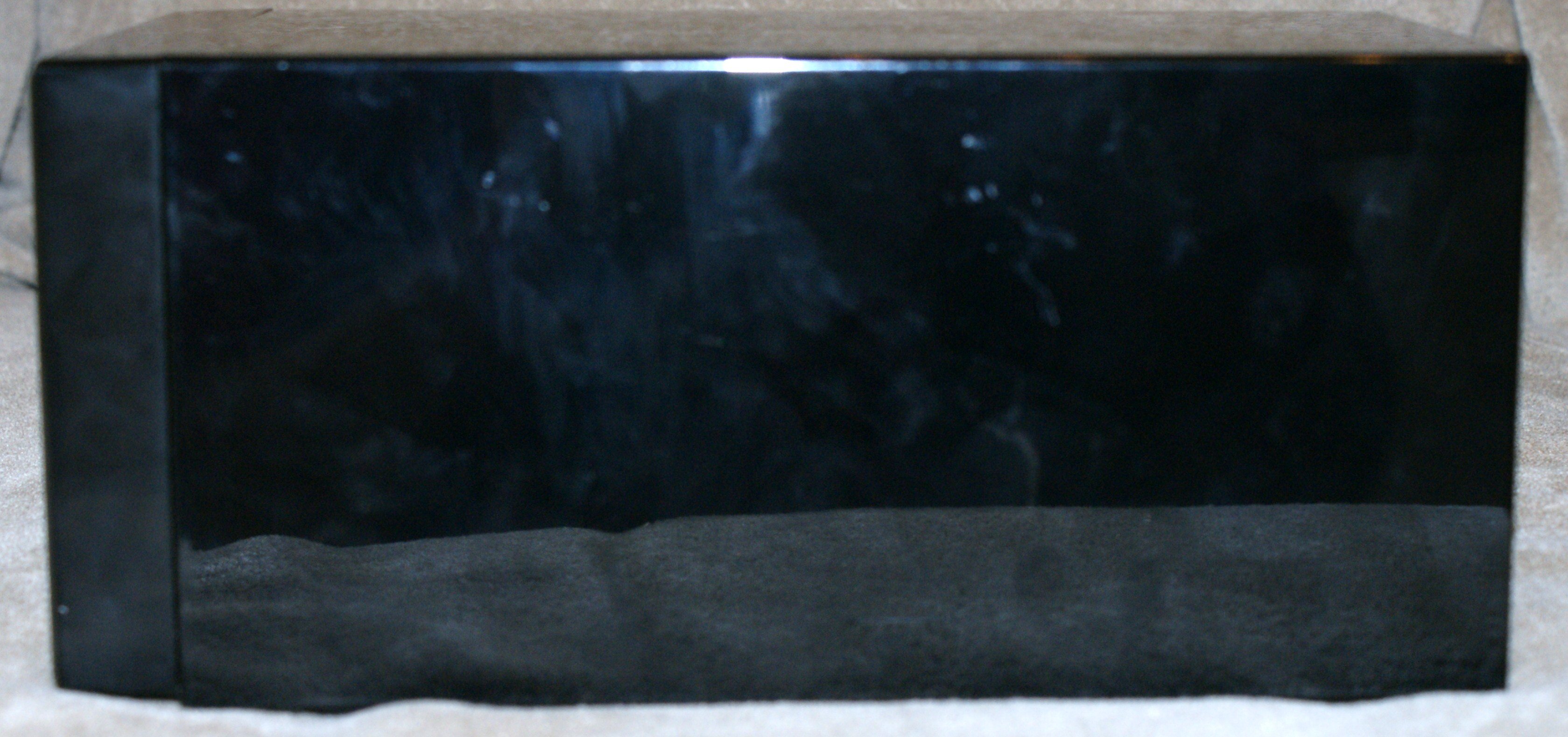

DSC06642

VGA connector, Ethernet port, two USB connectors

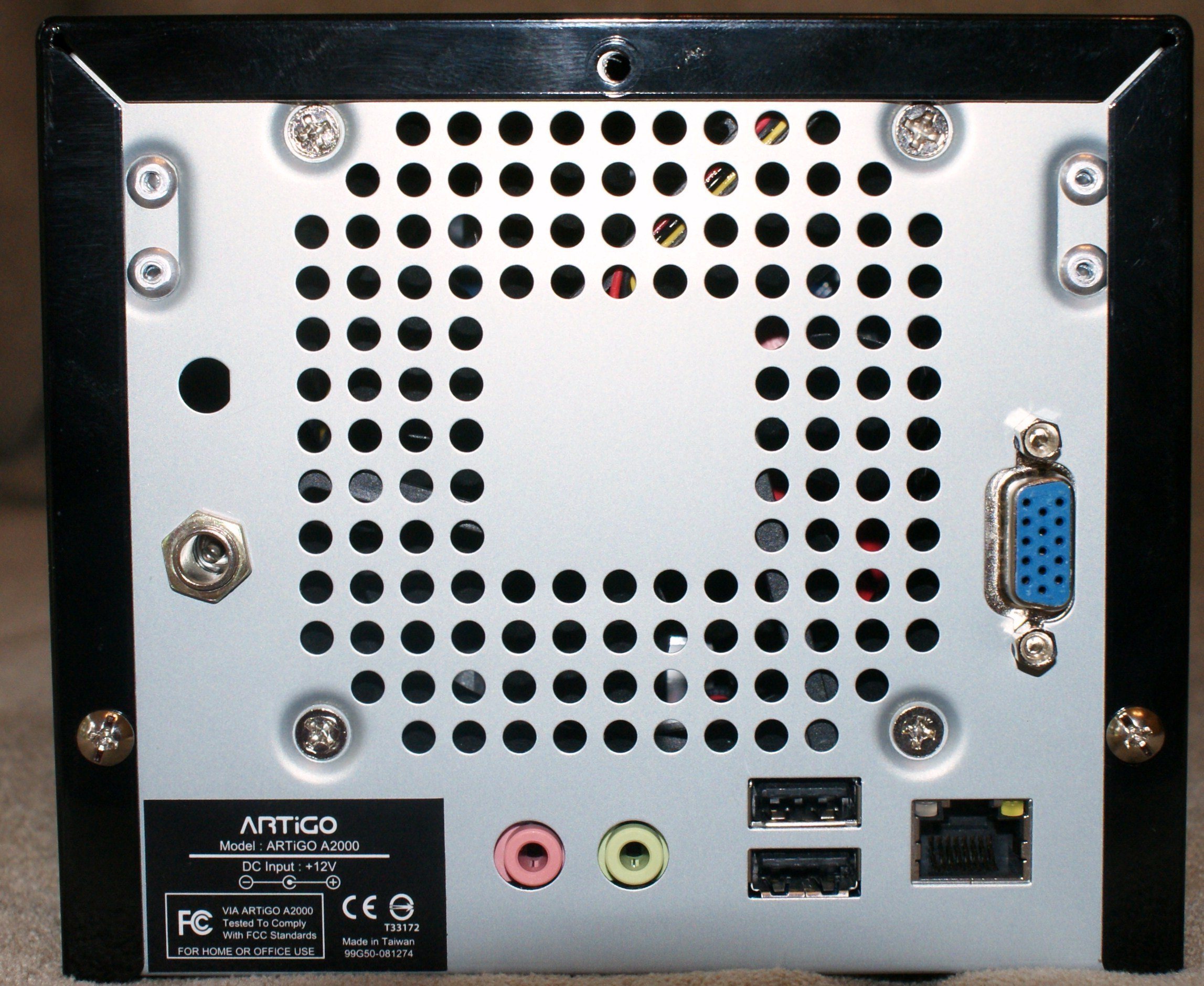

DSC06639

Tidy unit inside with the tiniest of motherboards

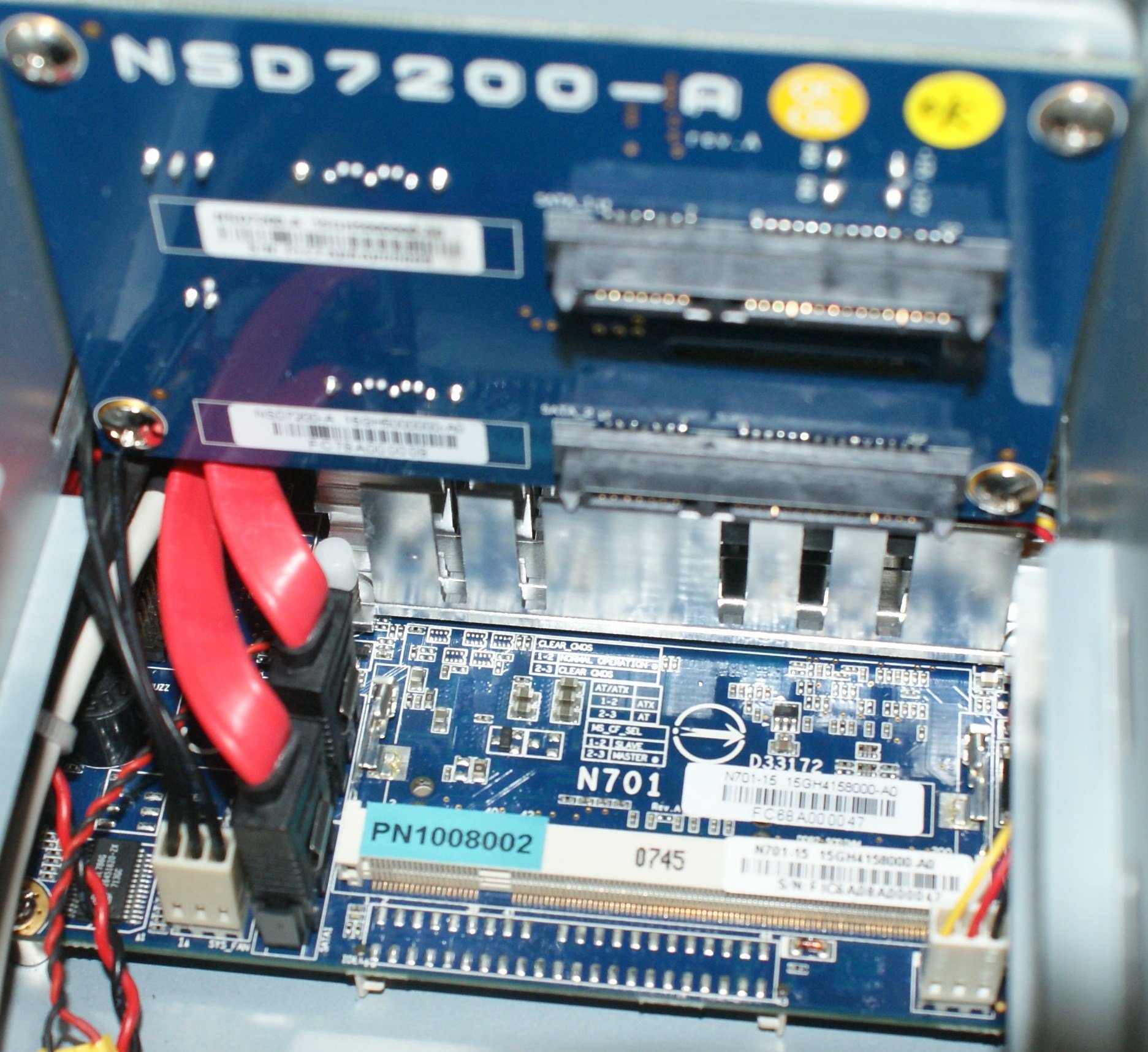

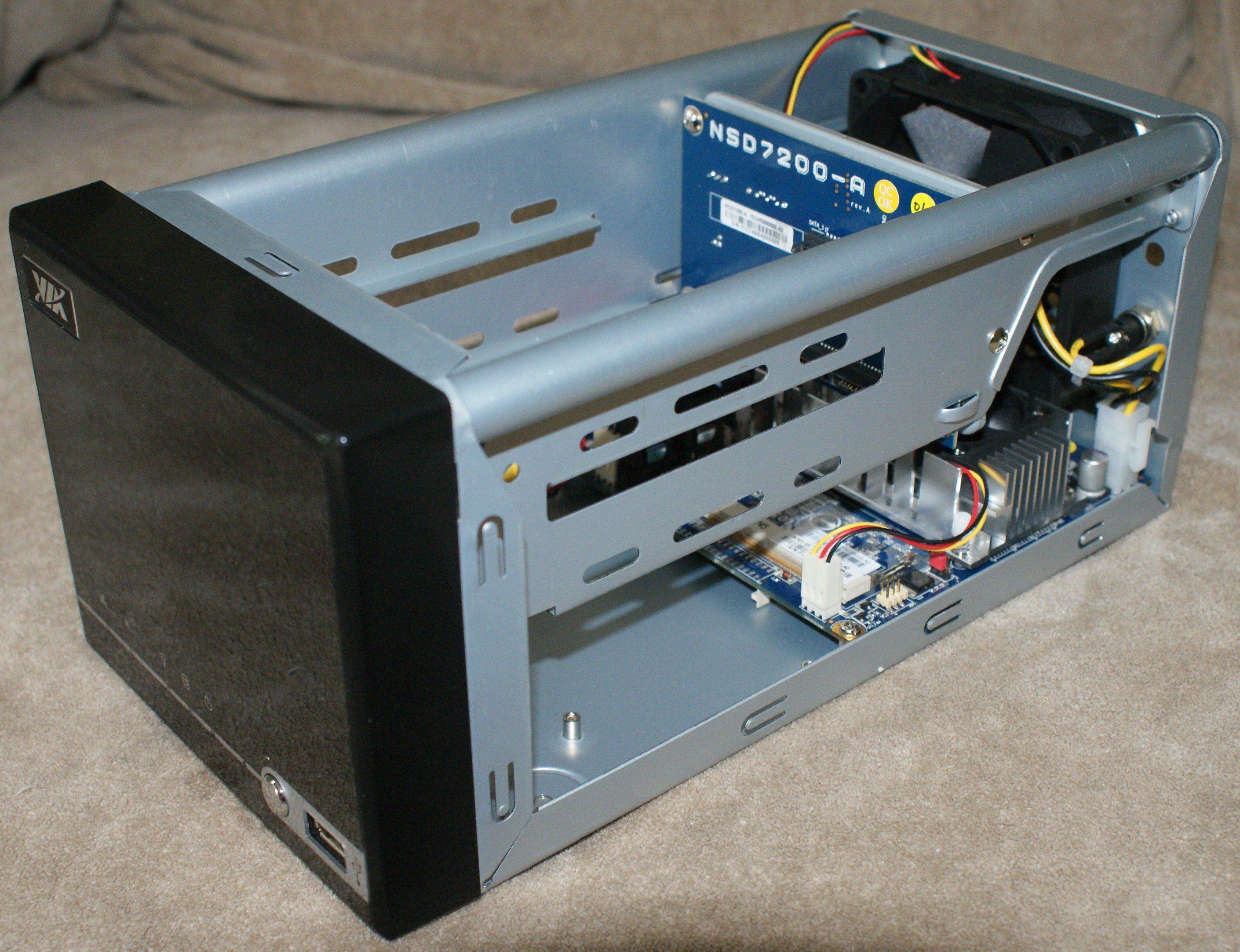

DSC06624

Inside the case

DSC06625

Side views

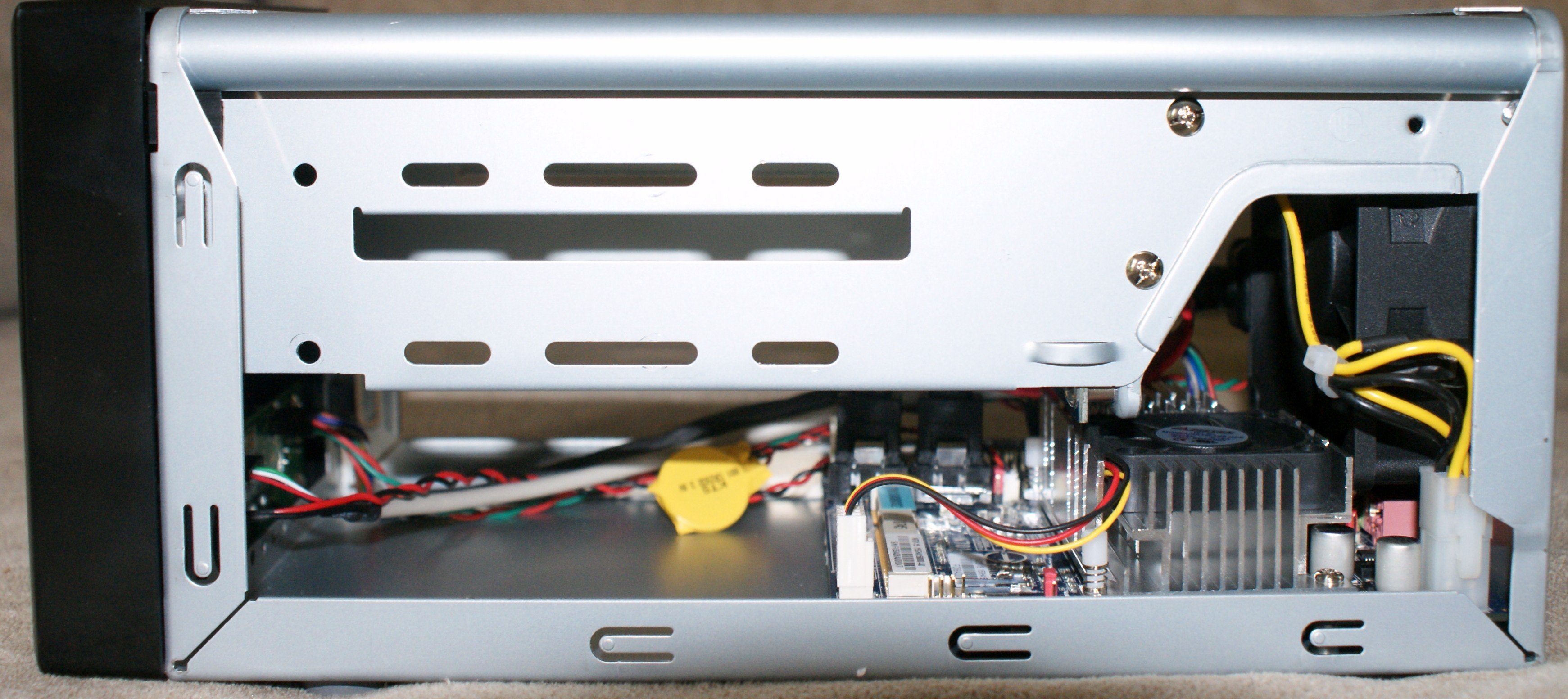

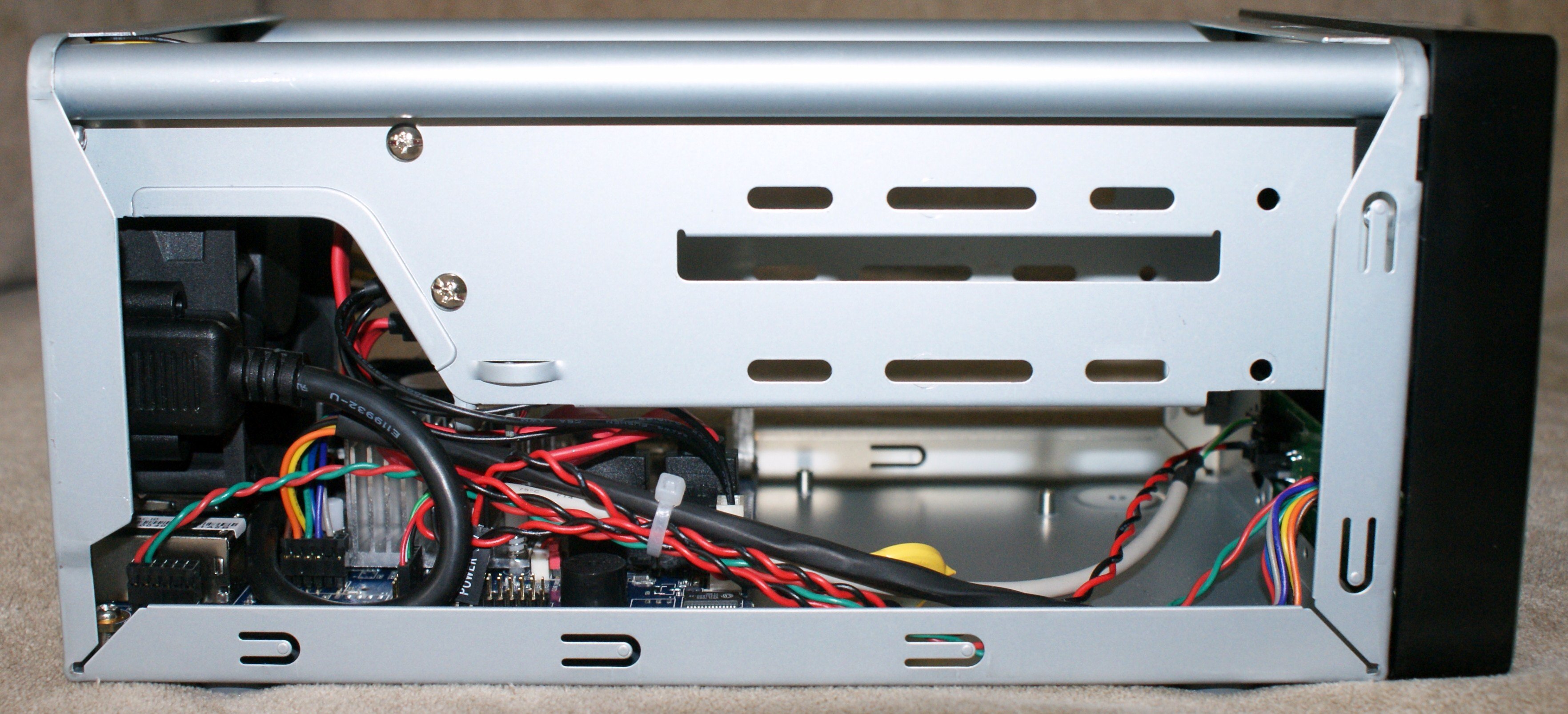

DSC06627 DSC06629

Overhead view of back

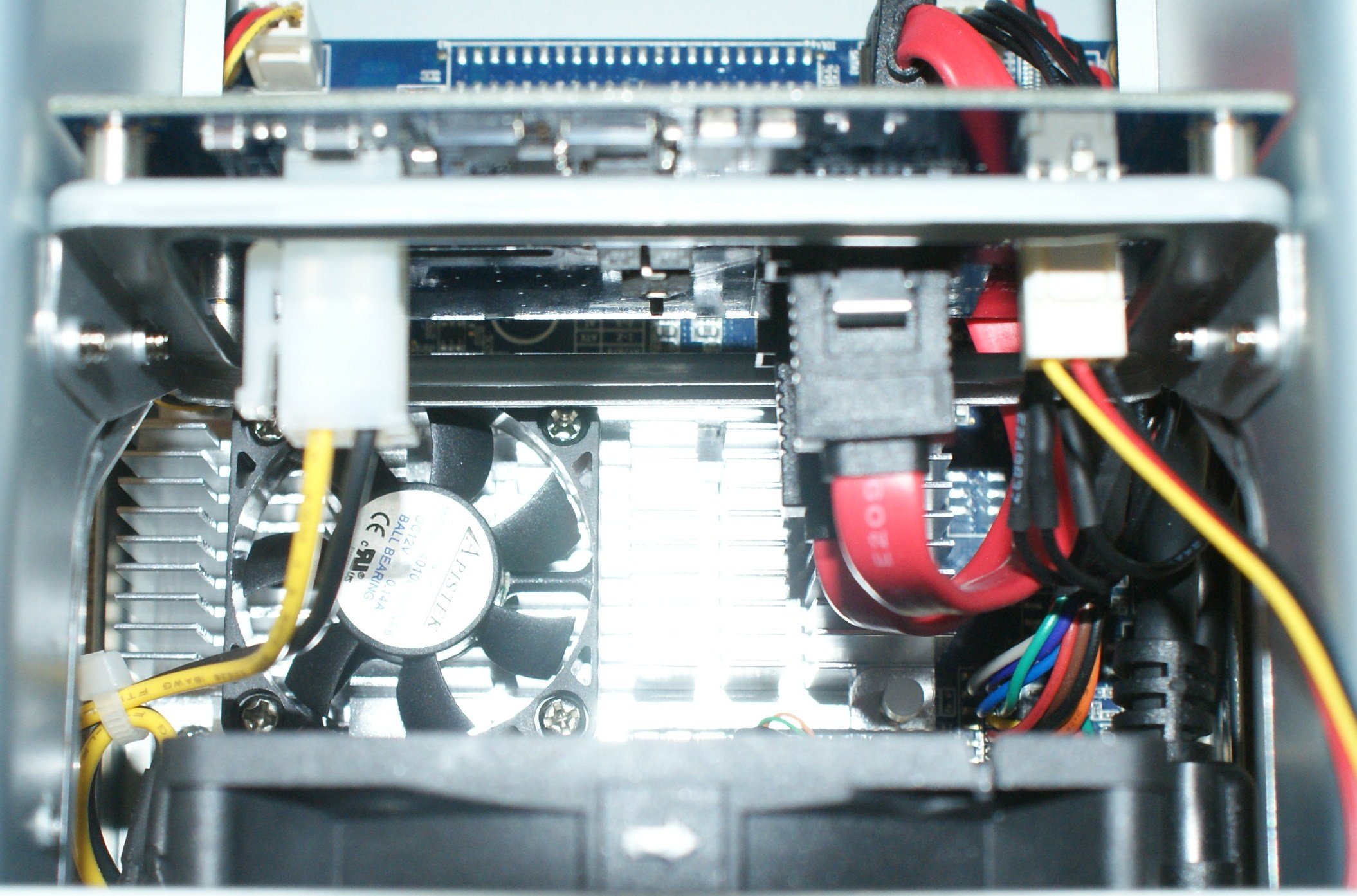

DSC06630

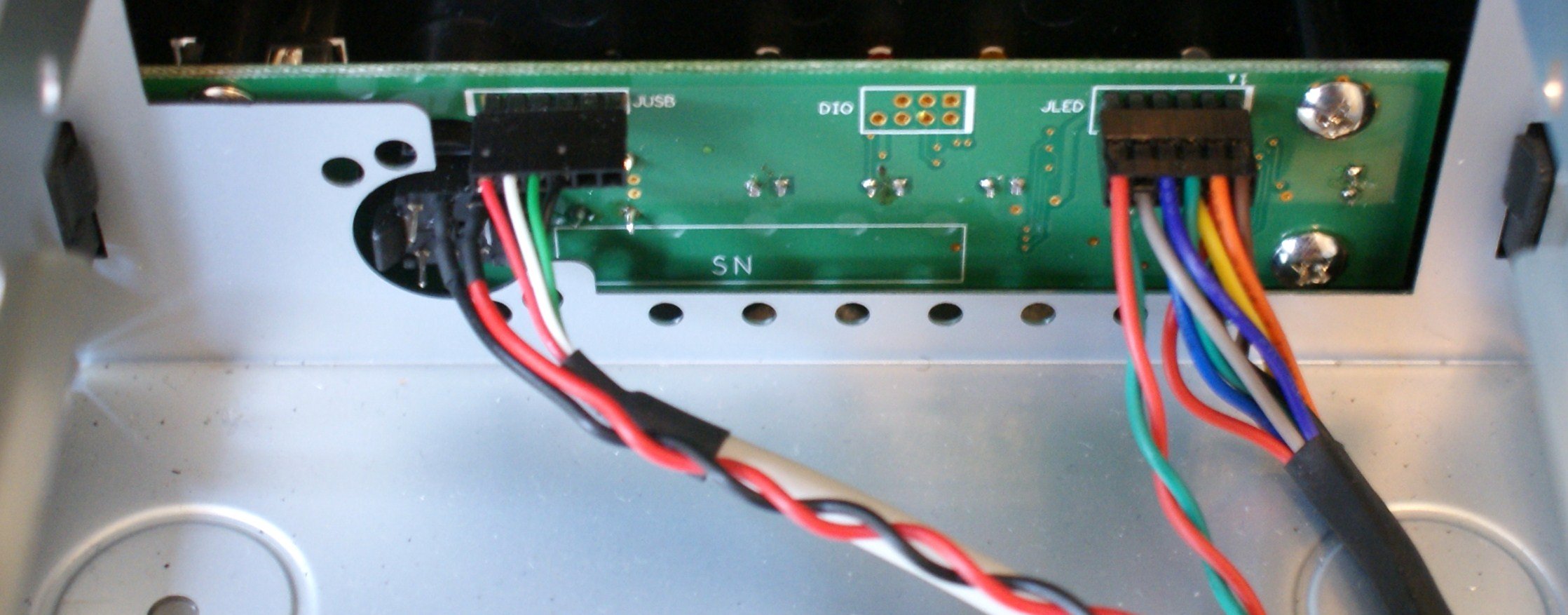

Behind the front cover

DSC06632

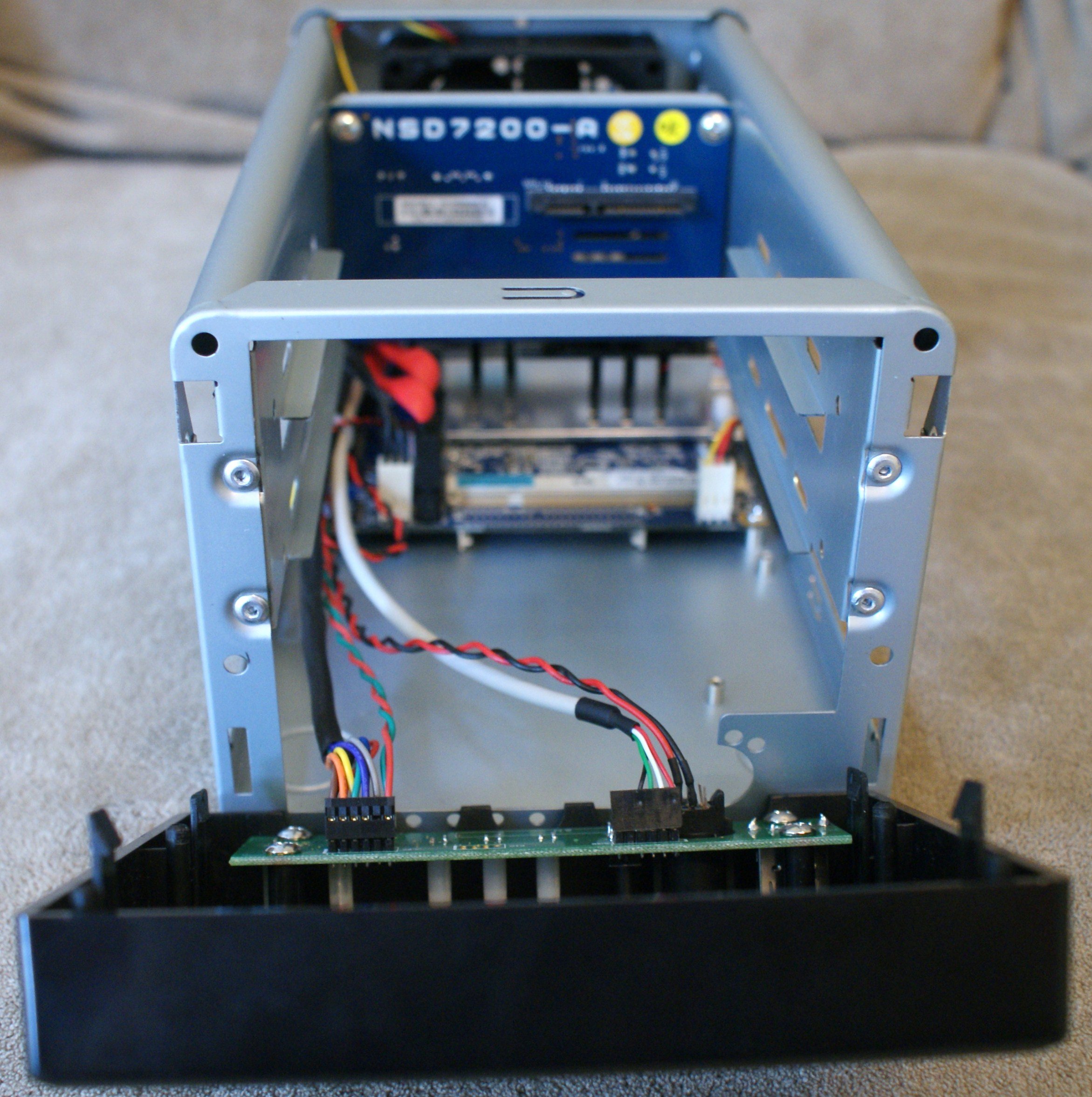

Front cover eased off by gently pushing the tabs seen on the left and right below

DSC06633

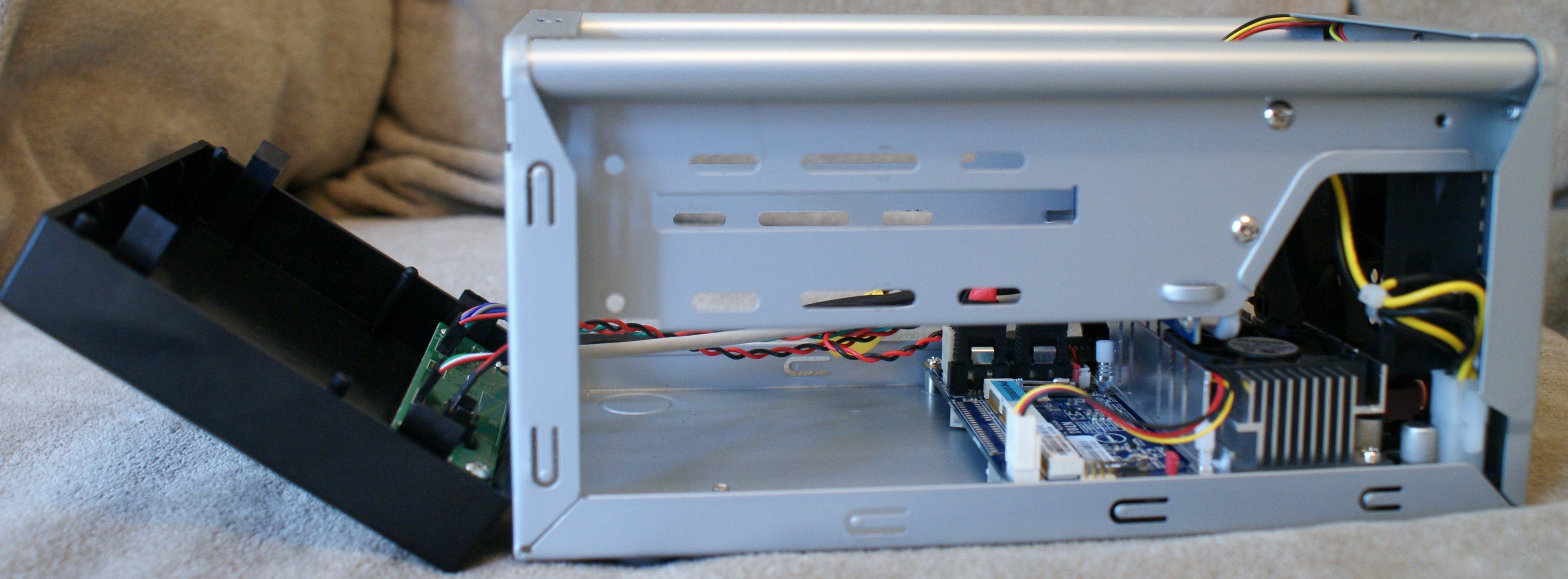

This is about as far as you want to pull the fascia without disconnecting any wires

DSC06634

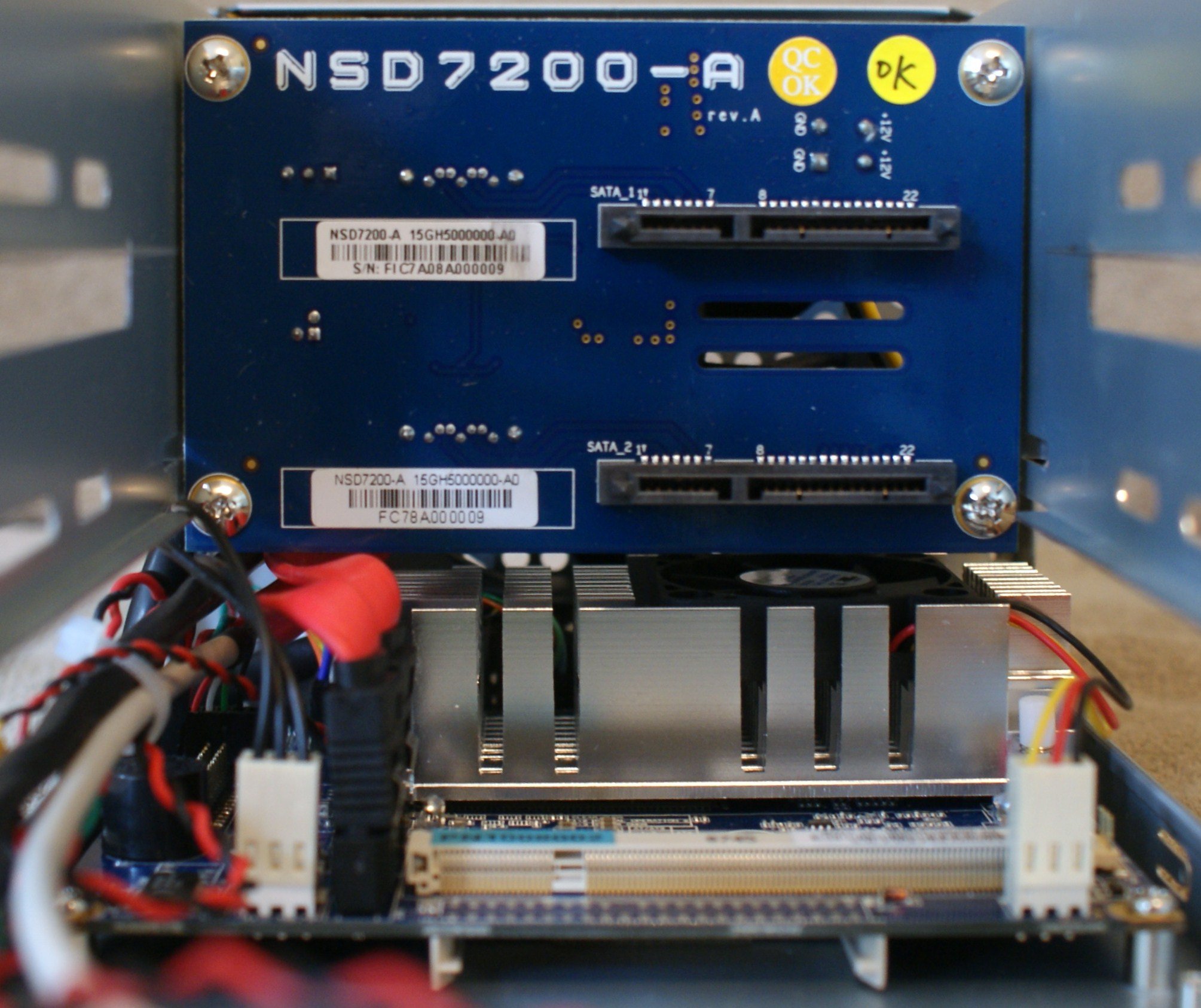

Slide the drives in here

DSC06635

The front of the system board

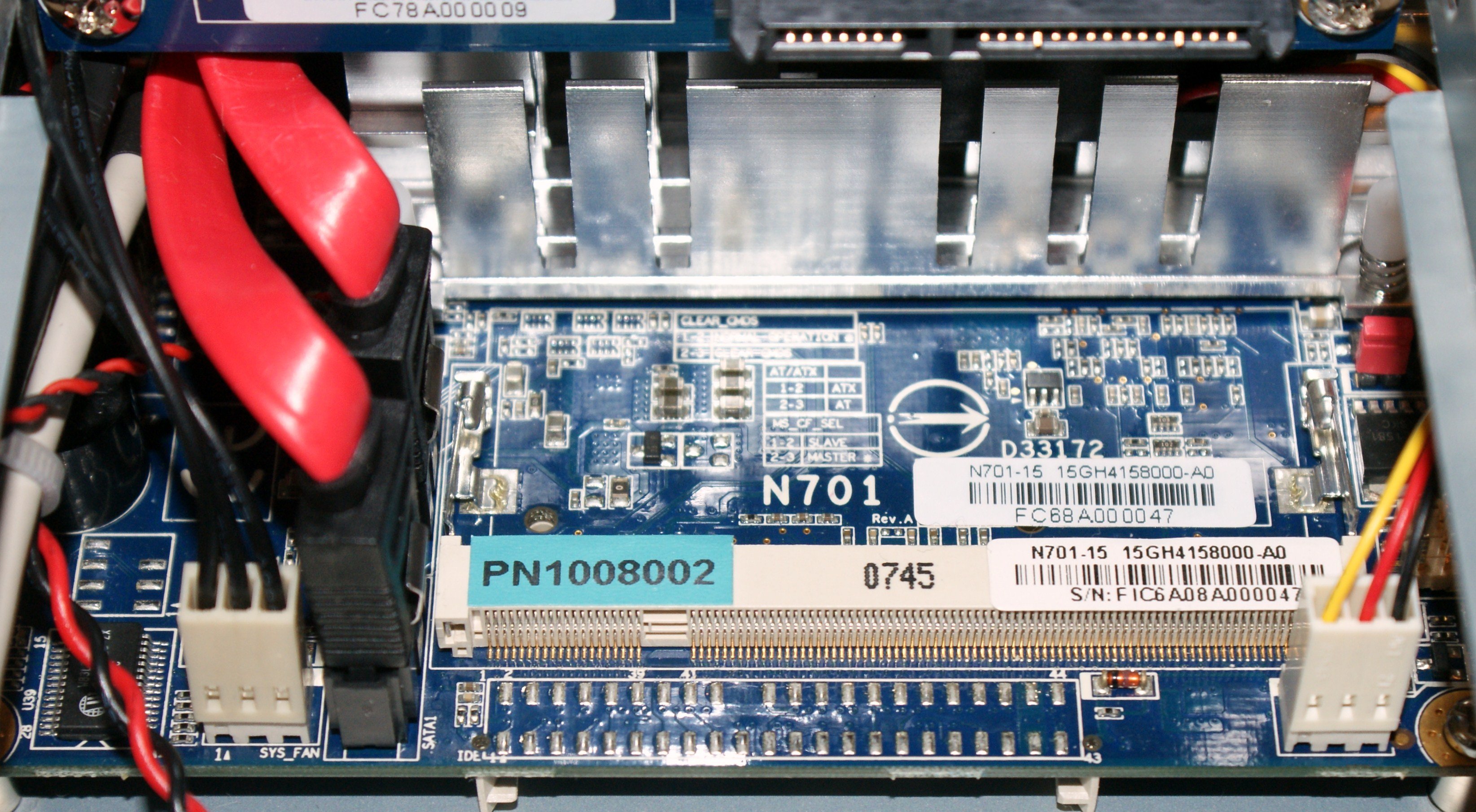

DSC06637

Inside the Artigo

[youtube=http://www.youtube.com/watch?v=DZW2RlQDBf8]

What Do I Need to Build a System?

So in order to build a complete Windows Home Server system you are going to need the following parts:-

  • VIA ARTiGO A2000.
  • 3.5″ SATA drives (one or two as required).
  • a single 1GB or 2 GB DDR2 533 SODIMM.
  • a copy of Windows Home Server.
  • an installation method of some kind so a bootable USB hard disk/2GB USB memory stick, or a USB DVD drive.
  • USB keyboard, USB mouse and monitor for the duration of the build and initial system set up.

The build process is very easy like any other PC or server system, install the RAM, then the hard disc(s). Then connect your temporary keyboard, mouse and monitor and enter the BIOS to temporarily change the boot device. You should then select USB and use your USB DVD drive or bootable USB device to install the OS. Don’t forget to change the BIOS settings back to the hard disc being the primary boot drive, before you return your keyboard, mouse and monitor to their usual homes! If you forget to do this, any time you leave a bootable USB device connected to your ARTiGO it will boot into that device and not WHS; but you won’t be able to see why!

If you built a WHS server with one hard disc, you would be paying in the region of £400 in total.

Conclusions

The ARTiGO A2000 does make a good entry level Windows Home Server system; and although it has room internally for 2 discs and USB connectivity to add further external drives, its growth potential is limited.

The unit is energy efficient, small, and quiet, so if you load it up with a couple of 1.5 or 2 Tb drives this could fulfill the average WHS users requirements. The C7 processor is not the most powerful CPU going, but used in the usual file server context of WHS this shouldn’t present any major issues.

All in all a good starting point for the WHS enthusiast, with the added interest of being able to build it yourself and specify exactly the RAM and disk space that you want.
